Nikon Eclipse TS2 Inverted Phase Contrast Microscope
The easy-to-use Nikon Eclipse TS2 Inverted Phase Contrast Microscope is designed to integrate into nearly any lab with flexible use and high-quality components. The binocular head of the TS2 is at a 45-degree inclination, with adjustable pupillary distance and a 10x eyepiece. The turret is a quadruple nosepiece with a manually adjustable stroke, up 7mm, down 1.5mm.
The TS2 Microscope can be used for brightfield, apodized phase contrast with a reduced halo, phase contrast, and emboss contrast using just the brightfield lense and two-phase contrast sliders to provide a pseudo 3d image for thicker specimens. This inverted microscope uses LED lighting with a built-in Diascopic Illumination system that’s alignment-free, durable and consumes less energy than traditional sources.
Specifications
Specifications
Nikon Eclipse TS2 Microscope Specifications:
| Optical System | CFI60 Infinity Optical System |
| Observation method | Brightfield, apodized phase contrast, phase contrast, emboss contrast |
| Tube | Inclination: 45 degree, Pupillary distance: 50 – 75 mm, Siedentopf type, Attachable camera port, Eyepiece/Port: 100/0:0/100 |
| Eyepiece (F.O.V.) | 10X (22) |
| Focusing | Via nosepiece up/down movement, Stroke (manual): Up 7 mm down 1.5 mm
Coarse stroke: 37.7 mm per rotation, Fine stroke: 0.2 mm per rotation, Coarse motion torque adjustable |
| Nosepiece | Quintuple |
| Slider | Precentered or Centering PH Slider, 4X, 10X, 20X Objectives available for phase contrast
Emboss Contrast sliders (both condenser-side slider and eyepiece-tube-side slider must be mounted), 4X, 10X, 20X objectives available for Emboss Contrast |
| Illumination | Diascopic The binocular head of the TS2 is at a 45-degree inclination, with adjustable pupillary distance and a 10x eyepiece. The turret is a quadruple nosepiece with a manually adjustable stroke, up 7mm, down 1.5mm. |
| Dimensions | 9x23x19″ |
| Power | 120v |
| Weight | 23 lbs |
Included
Included
Included with this Eclipse TS2 Microscope
Nikon Eclipse TS2 Inverted Phase Contrast Microscope | CAT# Eclipse Ts2 | MSRP: $8702.18
Nikon Plan Fluor 4x/0.13 OFN25 PhL DL lens
ELWD 0.3/OD75
ELWD 0.3 w/ 1 PHL 4 and 1 PHL 10-20-40
10x/0.25 Ph1 ADL 1.2 WD 6.2 lens
LWD 20x/0.40 PH1 ADL lens
Binocular Eye Pieces C-W10xB/22
User Manual
12V Power Cord (2A)
30-Day Warranty
Notes
Notes
Technical Notes
This Inverted Phase Contrast Microscope has been fully inspected and the optics are clear. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

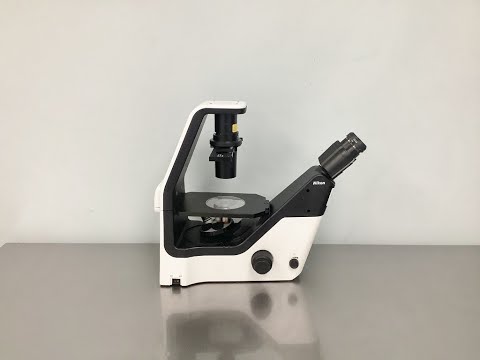

Nikon Eclipse TS2 Inverted Phase Contrast Microscope Video
Nikon Eclipse TS21 Inverted Phase Contrast Microscope Video ID 24503
