Olympus BX40 Microscope
The Olympus BX40F Upright Compound microscope features a trinocular head with a teaching viewing tube making this ideal for collaborative and teaching situations in the lab. The Olympus BX 40 features a coaxial coarse focus with a 15mm stroke and fine focus with a stroke of 0.1mm per rotation, over a full range of 25mm, with an upper limit stopper to prevent damage and torque adjustment for user comfort. The unique Y-shaped body of this teaching microscope provides excellent stability, rigidity, and reliable performance.
The Olympus BX40 also comes with a 4x Plan, 10x Plan, 20x UPlanFl, and 40x UPlanFl Objectives This compound microscope has an adjustable trinocular head, with a three-position switch to toggle between 100% eye, a mix of optical viewing and camera, or all camera observation. This upright microscope features 10x eyepieces with interpupillary and diopter adjustments, set at a 30° angle. The Olympus BX40 has an adjustable stage that travels 52 mm vertically and 76mm horizontally.
Specifications
Specifications
Olympus BX40F Upright Compound Microscope Specifications:
| Dimensions | 12″x16″x20″,
26″x19″x21″ with a teaching tube attached |
| Weight | 35 lbs total |
| Power | 100-120V/240V, 2.8/1.8a, 50/60Hz |
Included
Included
Included with this Microscope
•Olympus BX40 Microscope | CAT# BX40F
•Trinocular Head with 10x Eyepieces
•Teach Scope Extension with Binocular Head with 10x Eyepieces
•4x Plan, 10x Plan, 20x UPlanFl, 40x UPlanFl Objectives
•Brightfield Halogen Lamp Source
•User Manual
•120V Power Cord
•30-Day Warranty
Notes
Notes
Technical Notes
This Olympus microscope has been fully inspected and is ready to ship. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

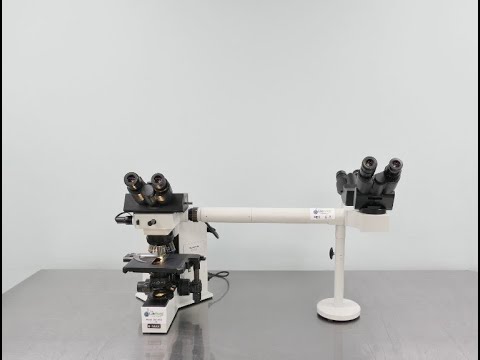

Olympus BX40 Microscope Video
Olympus BX40 Microscope ID 16953
