Olympus CKX41 Inverted Phase Contrast Microscope

0 out of 5
( There are no reviews yet. )

$2,995

Availability: 1 in stock SKU: 24620 Category:
View cart View Quote List

Description

Olympus CKX41 Inverted Phase Contrast Microscope

The Olympus CKX41 Inverted Phase Contrast Microscope offers advanced optics with outstanding clarity and comfort. This compound microscope with a trinocular head can be paired with a micropublisher RTV imaging camera and capture software, making it suitable for capturing slides, GFP, and other fluorescence applications. Its quick-action, tilting head lets users easily perform visual checks and boosts productivity with pre-centered phase contrast.

 This inverted phase-contrast microscope features a fixed-level stage and vertical nosepiece movement. It has course refinement at 36.8mm per rotation and fineness at 0.2mm. It also comes with a 30w halogen lamp and built-in frosted and heat-absorbing filters to give better color integrity, making it excellent for microphotography.

Specifications

Olympus CKX41 Inverted Phase Contrast Microscope Specifications:

Optical System UIS2/UIS (Universal Infinity System) optical system
Illumination Built-in transmitted Koehler illumination High-intensity halogen bulb 6V30WHAL (PHILIPS 5761) (Average lifetime: Approx. 100 hr. when used as directed) Output rating: 6 V 30 VA (DC) Input rating: 100-120/220-240 V, 0.85/0.45 A, 50/60 Hz
Focusing Vertical movement of revolving nosepiece (stage height fixed) Coarse and fine adjustment knobs (provided with rotation tension adjustment mechanism) Stroke per rotation (from focal point on stage surface): 7 mm upward and 2 mm downward
Ultra long working distance condenser NA 0.3/ W.D. 72 mm (built in)
Dimensions 12″x21″x20″
Weight 21 lbs
Power 115V 50/60Hz

Included

Included with Olympus CKX41 Inverted Phase Contrast Microscope

Olympus Microscope | CAT# CKX41 | Inverted Phase Contrast Scope
4x, 10x, 25x Plan Objectives
NA0.30 condenser
Phase Ring Slider with Phase Rings
120V Power Cord (4A)
30-Day Warranty

Notes

Technical Notes

This Olympus CKX41 Inverted Phase Contrast Microscope has been thoroughly inspected and has terrific clarity and brightness. All of our lab equipment comes backed with our standard warranty. Should you have any questions, please don’t hesitate to contact us.

Video

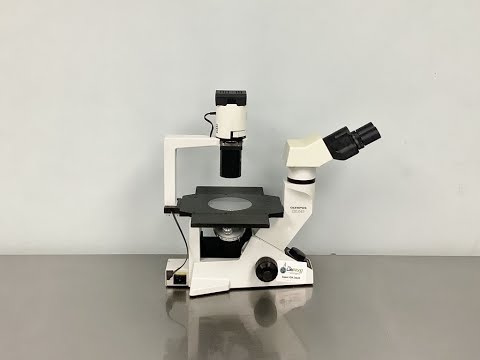

Olympus CKX41 Inverted Phase Contrast Microscope Video

Olympus CKX41 Inverted Lab Microscope Video ID 24620
