PHCBi VIP ECO ULT Freezer – Unused
The Panasonic VIP ECO upright Ultra-Low Freezer offers dependable performance and secure storage with an eye toward energy conservation and ecological design. The comprehensive refrigeration system uses natural refrigerants and PHC-engineered heat transfer components while retaining refrigeration power to recover quickly after openings. By using natural refrigerants, this -86°C Freezer provides consistent ultra-low temperature ranges and minimizes the environmental impact of its counterparts on the market. The interior chamber of this PHCBI freezer has been maximized, holding over three hundred two-inch sample boxes.
The Panasonic Ultra Low Freezer features eye-level, full-color LCD touchscreen control. From this command center, users can set parameters, monitor conditions, view a graphical temperature log set, and silence various audio and visual alarms. The incorporated USB port makes transferring logged data to a PC convenient. Also featured in this PHCBI Freezer is a holistic frost mitigation approach to the whole ULT freezer design with the EZlatch handle. This handle is built for a one-handed opening and is durable enough to withstand frequent access while maintaining the door seal’s reliability. The vacuum relief port helps to equalize the pressure for quick entry, and removable gaskets can be replaced without using tools to keep this ULT freezer in top condition.
Specifications
Specifications
PCHBi Ultra Low Freezer MDF-DU502VH-PA Specifications:
| Temperature Control Range | -50°C to -86°C in 1° increments (center of chamber, ambient temperature 30°C, no load) |
| Capacity | 25.7 cu.ft. (729 L) |
| Internal Dimensions | 34.3″ x 23.6″ x 55.1″ |
| Storage | 384 Boxes 3”/76 MM Fiberboard Boxes
24 Racks 3”/76 MM Fiberboard Boxes |
| Shelf Load | 110 Lbs, 50kg Per Shelf |
| Access Ports | 3; upper back wall (back-up system), bottom left (recorder sensor), bottom right (access); Inner diameter: 0.6 in (17 mm) |
| Sound Level | 46 Db(A) (Background Noise 20 Db(A)) |
| Compressors | (2) 750 W, variable speed |
| Refrigerant | High-stage R-290 natural refrigerant, Low-stage R-170 natural refrigerant |
| Area Footprint | 9.78 Sq.Ft. (0.91 M2) |
| Dimensions | 40.6″ x 36.8″ x 78.5″ |
| Energy Consumption At 23°C Ambient | 7.45 Kwh/Day (steady state, empty) |
| Power | 115V | 60Hz| 11.2A | 930W |
| Weight | 613 lbs |
Included
Included
Included with the VIP Eco ULT Freezer
PHCbi ULT -86C Freezer | CAT# MDF-DU702VHA-PA | Unused Scratch & Dent | MSRP: $15918.00
Temperature Validation Graph
Shelves
User Manual
120V Power Cord (12A)
30-Day Warranty
Please Note: Orange datalogger seen in photos is not included. This is our testing equipment to demonstrate a fully working system.
Notes
Notes
Technical Notes
This PHCBi VIP Eco ULT freezer has been fully inspected and is operating without issue. Please Note: This listing is for an unused scratch and dent model Panasonic ultra-low freezer that’s been fully tested with a clean bill of health. Unit passed validation and is ready to ship. Orange-white datalogger seen in photos is not included; this is our testing equipment to demonstrate a good working ult freezer.
All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

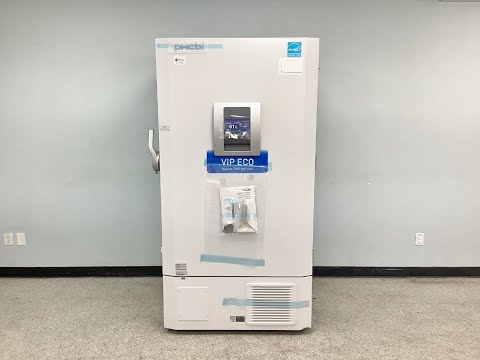

PHCBi VIP ECO Ultra-Low Freezer Video
PHCbi ULT -86C Freezer ID 25494
