Description
Description

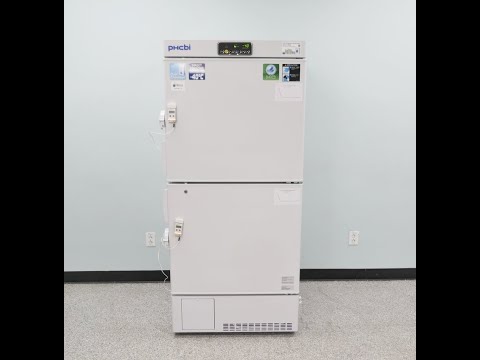

PHCBI Freezer – 2021 Dual Chamber
The PHCBI Freezer MDF-MU549DHL-PA is a Biomedical Freezer that brings you efficient and innovative storage with a compact footprint and an eye toward flexibility. This Panasonic upright lab freezer is 479 liters (16.9 cu ft) with a top and bottom door design that helps to prevent temperature loss during openings. The dual chamber design of this Panasonic freezer is ideal for shared lab spaces and features independent control for each section. The top and the bottom have dedicated compressors, so you can set the individual temperature per chamber. This digital control can be set between -20°C to -40°C, making it suitable for reagent storage, powered by environmentally friendly hydrocarbons.
The PHCBI Freezer MDF-MU549DHL-PA is easy to operate from the soft-touch keypad. The users of this Panasonic upright lab freezer can set alarm parameters and temperature set points. Audible and visual alarms on this Panasonic Freezer warn users of deviations in temperature, or the event of loss of power. The heavy, solid door and sealing gasket eliminates cold air loss, and the door is lockable for added security. The easy-to-clean interior is set over high-density foam insulation, for a temperature-resistant wall structure. Audible and flashing visual alarm lights supplement the setpoint deviation system to warn of parameter violations and loss of power.
Specifications
Specifications
PHCBI Dual Chamber Freezer Specifications
Temperature Control Range | -20ºC to -40ºC (Ambient temperature 5ºC to 35ºC, no load) |
Noise Level | 42 dB |
Capacity | 16.9 cu.ft. (479 L) |
Internal Dimensions | 25x21x23” each chamber top and bottom |
COMPRESSOR | 2, one per chamber |
Refrigerant | R-290 |
External Dimensions | 34x32x71” |
Weight | 364lbs |
Power | 115 V, 60 Hz, 3.7A, 420 power consumption |
Included
Included
Included with this Dual Chamber Freezer
2021 Panasonic Freezer | Dual Chamber -20C & -40C | CAT# MDF-MU549DHL-PA | MSRP: $10,706.91
Temperature Validation Report
Shelves with Hardware
User Manual
120V Power Cord (4A)
30-Day Warranty
Please Note: Orange datalogger seen in photos is not included. This is our testing tools to demonstrate a fully working system.
Notes
Notes
Technical Notes
This PHCBI freezer has been fully inspected and is operating without issue. Please Note: Orange datalogger seen in photos is not included. These are our testing tools to demonstrate a fully working system. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video
PHCBI Freezer with Dual Chamber Video
PHCBI Freezer - 2021 Dual Chamber ID 17132
