Qiagen Rotor Gene Q – 5Plex Real Time PCR

0 out of 5
( There are no reviews yet. )

$7,499

Availability: 1 in stock SKU: 25487 Category:
View cart View Quote List

Description

Qiagen Rotor Gene Q 5 Plex Real Time PCR

The Qiagen Rotor-Gene Q is a 5-plex real-time PCR system with outstanding performance and a wide optical range, supporting up to 5 channels from UV to infrared wavelengths. This low-maintenance RT-PCR system features a unique rotary design that provides centrifugal force for precise and versatile real-time thermal cycling. With uniform optical detection, this rotary action spins each tube at the same temperature for highly sensitive, rapid results without the sample-to-sample variation you get from block-based instruments. Tube-to-tube variation of this rotary qPCR is ±0.02°C, and is capable of fast ramping, with ignorable equilibration times for short run-times.

The Qiagen Rotor-Gene Q RT PCR system has five color channels: green, yellow, orange, red, and crimson, and utilizes user-friendly software. This software allows users to create new excitation and detection wavelength combinations, making it compatible with current and future dyes and keeping you ahead of the game. With no moving parts to change, this reliable PCR system will keep you up and running for years to come, including opticals that don’t require calibration and LEDs that are stable and long-lasting.

Specifications

Qiagen Rotor Gene Q 5Plex Real Time PCR Specifications:

Dynamic range 10 orders of magnitude
Heat dissipation/thermal load Average, 0.183 kW (632 BTU/hour); Peak, 0.458 kW (1578 BTU/hour)
Humidity 10–75% (noncondensing)
Operating temperature 18-30ºC (64-86ºF)
Optical System Up to 6 channels spanning UV to infra-red wavelengths
Excitation sources High energy light-emitting diodes
Green 470 ± 10 excitation (nm)

510 ± 5 Detection (nm)
Yellow 530 ± 5 excitation (nm)

557 ± 5 Detection (nm)
Orange 585 ± 5 excitation (nm)

610 ± 5 Detection (nm)
Red 625 ± 5 excitation (nm)

660 ± 5 Detection (nm)
Crimson 680 ± 5 excitation (nm)

712 ± 5 Detection (nm)
Detector Photomultiplier
Acquisition time 4 seconds
Samples per run Tubes 0.2 ml;
Strip Tubes 0.1 ml (4 tubes);
Rotor-Disc 72; Rotor-Disc 100;
Up to 100 samples per run using a Rotor-Disc 100
Typical run time 40 cycles in 45 min with the QIAGEN RG Kits (assay dependent)
Power 100–240 V AC, 50–60 Hz, <520 VA (peak)
Dimensions 16″ x 14″ x 11″
Weight 28 lbs

Included

Included with Qiagen Rotor Gene Q 5Plex Real Time PCR

Qiagen RotorGene 5 Plex Real Time PCR | CAT# Rotor-Gene Q | MSRP: $48,658.00
Rotor with Locking Cap – 72 x 0.1ml | CAT# 9018903
Windows 10 Notebook Running Rotor-Gen Q Pure Detection Software
Communication Cable
User Manual
120V Power Cord (5A)
30-Day Warranty

Notes

Technical Notes

This Qiagen Rotor-Gene Q 5Plex Real-Time PCR has been tested and run the diagnostic test on the qPCR, and the instrument passed with a clean bill of health. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.

Video

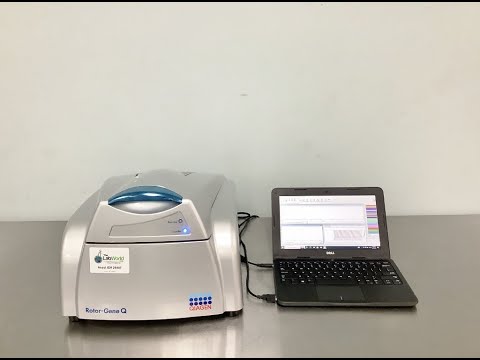

Qiagen Rotor Gene Q 5Plex Real Time PCR Video

Qiagen RotorGene 5 Plex Real Time PCR ID 24587
