Repligen KR2I TFF System
- Description
- Specifications
- Included
- Notes
- Video
Description
Description
Repligen KR2I TFF System
The Repligen KR2I Tangential Flow Filtration System is built for research and process development at 2 mL to 25 mL volumes, and works with hollow fiber and flat sheet filters. This TFF system is plug-and-play and fully configurable, allowing users to add or remove components to meet their needs. The KrosFlo KR2I has walk away automation, and 13 automated process control modes and the Automatic Back Pressure valve that eliminates the need to tweek a screw clamp This reduces operators hands on time and improves reproducibility.
The Repligen KR2I Tangential Flow Filtration System provides fast, gentle diafiltration and ultrafiltration with maximized product recovery for small applications. The whole system is supported by powerful KF Comm 2 software, which automatically graphs run data for users, including specifics like flow rates and inlet, retentate, and transmembrane pressures, into a spreadsheet for analysis.
On the instrument itself, an easy-to-read, backlit, graphics-based touch screen digital display that allows users to monitor recirculation flow rate and pressures in real-time. This TFF system comes equipped with Hollow Fiber filtration modules. The hollow fiber modules of this ultrafiltration system give you a gentle separation while avoiding membrane fouling and recouping maximum product. By using a disposable flow path, users avoid cross-contamination worries and the hassle of revalidating modules before the next run, giving you faster turnarounds and results you can count on.
Specifications
Specifications
Repligen KR2I TFF System Specifications:
Filter Mode | |
Hollow Fiber | |
Recommended Process Volume | 2 mL – 10 L |
Filter Surface Area | 13 cm2 – 3700 cm2 |
Flat Sheet Cassettes | |
Recommended Process Volume | 12 mL – 15 L |
Filter Surface Area | 100 cm2 – 5000 cm2 |
Main Drive/Feed Pump and Stand | Easy-Load Pump Head – up to 2.3 LPM (600 RPM) Use with tubing sizes #13, #14, #16, #17, #18 and #25. Integrated stand for hollow fibers |
System Scales | Two (2) Capacity up to 20,000 g, Readability 0.1 g 7.7” x 7.7” (17.8 cm x 17.8 cm) Platform |
Tablet HMI | Licensed proprietary KF Comm 2 Data Acquisition Software |
Automatic Back pressure Control Valve (ABV) | Controls user-set process pressure parameters |
Pressure Transducers | Luer-style, polysulfone. Up to 3 single-use sensors Pressure range of -7 to 75 psi (-0.48 to 5.2 bar) |
Auxiliary Component Octopus Cables | Allows for connectivity of auxiliary equipment and pressure sensors |
Reservoirs | 15 mL, 50 mL, 250 mL, 500 mL polypropylene conical containers, caps with ported inlets, conical holders |
Enclosures | IP33 rated plastic enclosure. Wipe down cleanable |
Auxiliary Pumps | KR1 600 RPM, flowrates up to 2.3 LPM |
Scales | Max 20000g, 0.1g readability |
Dimensions | Main Unit 11x8x8” Pumps 1 & 2 6x7x3” Scales 1 & 2 13x8x4” |
Weight | Main Unit 17lbs Pumps 1&2 9lbs each Scales 1&2 6lbs each |
Power | 120 V, 50/60 Hz, 7A |
Included
Included
Included with this TFF system
Repligen KR2I TFF SYSTEM | CAT# 0823062024 | MSRP: $25,313.00
Touch Screen Controller Running KrosFlo Software with Stand
Three Peristaltic Pumps
Two KrosFlo Scales
User Manual
120V Power Cord (7A)
30-Day Warranty
Notes
Notes
Technical Notes
This TFF system has been thoroughly inspected and is operating without issue. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

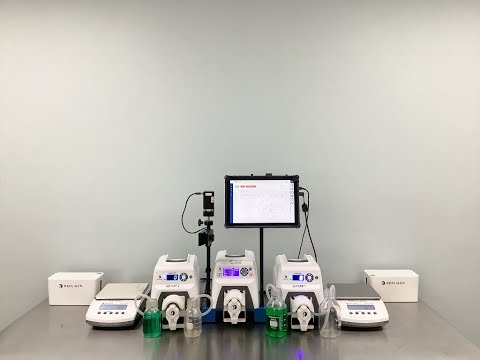

Repligen KR2I TFF System Video
Repligen KR2I TFF SYSTEM ID 24813
