Description
Description
PA 800 Plus Pharmaceutical Analysis System
The Sciex PA 800 Plus Pharmaceutical Analysis System provides an automated collection of quantitative and qualitative analysis and protein separation. This analyzer system works with CE SDS gels, which allow denatured proteins to either be reduced or left intact to be used again in further analysis. Features include high-resolution SDS gel separation, advanced capillary isoelectric focusing, and carbohydrate profiling.
The Sciex PA800 Plus Pharmaceutical Analysis System comprises a sample handling system that holds up to 4 trays, two for samples and two for buffer on parallel tracks. Each sample tray holds up to 48 universal vials or a 96-well plate, while the buffer tray holds 36 universal vials. PA 800 plus also contains an interface block, a high-voltage power supply and electrodes, a source optics module and detector, temperature control hardware, and a sample injection system. The voltage range is 1 to 30kV, and the current range is 3-300 uA.
The Sciex PA800 Plus Pharmaceutical Analysis System is designed for ease of use, from characterizing and checking protein purity to charge isoform distribution and glycan analysis. The simplified operations guide users through a protocol from setup to result and require minimal maintenance. This modular system allows users to swap out UV, photodiode array, and laser-induced fluorescence detectors.
Specifications
Specifications
PA 800 Plus CE System Specifications:
| Voltage Range | 1 to 30kV programmable in 0.1kV increments |
| Current Range | 3-300 uA in 0.1uA increments |
| Pressure Delivery | -5 to 100 PSI |
| Sample Temperature Control | 4-60C |
| Capilarry Temperature Control | 15-60C |
| Capacity | 2 x96 well plate,
2 x 48 universal vials, 2 x 48 0.3 vials or microfuge tubes |
| Buffer Tray | 2 x 36 universal vials |
| Detection Capability | |
| UV/Vis | 200, 214,254,280nm |
| Diode Array
|
190-600 nm programmable
0.5-32 Hz scan collection frequency programmable |
| Laser Induced Fluorescence LIF
|
300-700nm excitation range
350-750 nm emission range 0-1000 RFU |
| Source Laser | 488 nm solid state laser |
| Dimensions | 25x27x29” |
| Weight | 188lbs |
| Power | 100-240V, 8A, 50/60Hz |
Included
Included
Included with this Pharmecutical Analyzer
Sciex Beckman PA 800 Plus CE System | CAT# PA800 Plus Capillary Electrophoresis | MSRP: $100,382.70
Computer Workstation Running PA800 Plus Software with USB Dongle
Diode Array Detector Module
UV Detector Module
488nm Laser Module
Sample Tube Racks as seen in photos
Communication Cable
User Manual
120V Power Cord (8A)
30-Day Warranty
Notes
Notes
Technical Notes
This CE System has been thoroughly inspected and is operating without issue. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

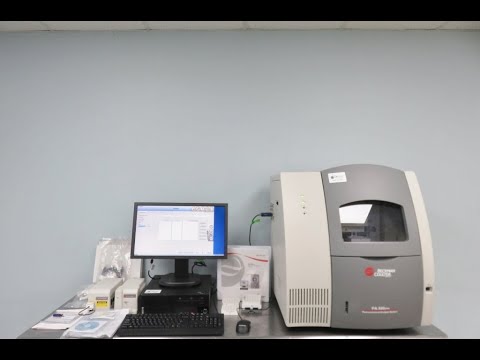

Sciex PA 800 Plus CE System Video
ID 22005
Beckman Coulter PA800 Plus CE System ID 22005
