TestEquity 115 Temperature Chamber

0 out of 5
( There are no reviews yet. )

Availability: Out of stock SKU: 9230 Category:

Description

TestEquity Model 115 Temperature Chamber

The TestEquity 115 Temperature Chamber offers an easy to access, full-range temperature testing with a rugged design. This test chamber is ideally suited for testing electronic components, systems, and finished products. The TestEquity model 115 has a 1.55 cu ft work area and is set on a cabinet to a position at a comfortable level of access. The wide temperature range of -73°C to +175°C covers a broad range of applications, with a ±0.1°C stability. This environmental chamber also has a fast cooldown and heat-up times, 2.8°C/minute from +85°C to -40°C, and 5°C/minute typical respectively. Cooling is achieved with ½ and 1/3 hp cascading compressors, with air-cooled condensers. The TestEquity 115 has an airflow of 85 CFM and a heating power of 600W. Users can control their desired parameters as well as set limits and see real-time temperatures from the up top command center with digital readouts. This controller can hold up to 40 profiles each with as many as 256 steps. The interior of this temperature chamber has two 3 in ports for additional monitoring, and the reversible door features a glass panel to allow for visual checks without thermal loss.

Specifications

TestEquity Model 115 Temperature Chamber Specifications:

Temperature Range –73°C to +175°C
Control Tolerance ±0.2°C (Measured at the control sensor after stabilization)
Uniformity ±0.5°C (Variations throughout the chamber after stabilization)
Live Load Capacity +23°C – 300 W

0°C – 255 W

–40°C – 160 W

–55°C – 110 W

–65°C – 80 W
Cool Down Rate of Change 2.8°C/minute from +85°C to -40°C (standard 60 Hz models)
Heat Up Rate of Change 5°C/minute typical
Uniformity ±1.0°C (Variations throughout the chamber after stabilization)
Air Flow 85 CFM
Internal Dimensions 16 x 13 x 12”
Dimensions 24x26x59”
Weight 300 lbs
Power 120vac, 60hz, 15a

Included

Included with TestEquity Model 115 Temperature Chamber

  • TestEquity Model 115 Temperature chamber | MSRP: $10,681.00
  • 120V Power Cord for Dedicated 20A Outlet
  • Temp Validation Report
  • Test Chamber User Manual
  • 30-Day Warranty
  • Please note orange thermometer seen in photos on the side on the chamber is not included.  This is our testing equipment.  The Unit was tested at -73°C up to 173°C and has a clean bill of health.

Notes

Technical Notes

This TestEquity Model 115 Temperature chamber has been fully inspected and is ready to ship. Please note orange thermometer seen in photos on the side of the chamber is not included.  This is our testing equipment.  The unit was tested at -73°C up to 173°C and has a clean bill of health. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.

Video

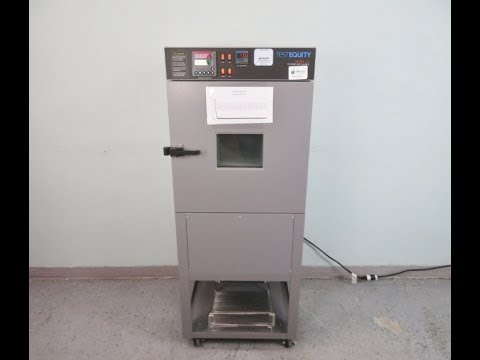

TestEquity Model 115 Temperature Chamber Video

TestEquity 115 Temperature chamber For Sale
