MJ Research Thermal Cycler Tetrad 2

0 out of 5
( There are no reviews yet. )

Availability: Out of stock SKU: 15648 Category:

Description

MJ Research Thermal Cycler Tetrad 2

The MJ Research DNA Engine Tetrad 2 Thermal Cycler is a robust PCR system with interchangeable blocks that can be swapped to meet an assay’s needs.  The base of this PCR machine accommodates four interchangeable blocks for various microplates, tubes, and slides.  The Thermal Cycler features built-in software with onboard PCR protocols needed for a wide range of DNA and RNA applications. The MJ Research Tetrad 2 was designed to increase productivity in today’s high throughput laboratories.

This easy-to-use Thermal Cycler has the ability to run up to eight independent runs at the same time. In addition, the DNA Engine Tetrad 2 allows the user to choose between block temperature controls, or calculate temperature control for accuracy and high speed. The onboard microprocessor of this thermal cycler will also store up to 1,000 programs so users can customize and retain their protocols.  The DNA Engine uses a standard PS-2 optics mouse and a Graphic User Interface (GUI) to streamline the use of the Thermal Cycler.  The DNA Engine Tetrad 2 Thermal Cycler has a temperature range of 0-105 °C but no more than 30°C below ambient, and a ramp rate of Up to 3°C/sec for all single- and dual-block Alpha units

Specifications

Tetrad 2 Thermal Cycler Specifications:

Temperature Accuracy ±0.3 °C of programmed target at 90°C, NIST- traceable (± 0.4°C for dual Alpha units)
Temperature uniformity ± 0.4°C well-to-well within 30 seconds of arrival at 90°C (±0.5°C for dual Alpha units)
Gradient accuracy

+0.3°C of programmed target at end columns,

30 seconds after the timer starts for the gradient step,  NIST–traceable
Thermal Range

0-105 °C but no more than 30°C below ambient

temperature (10-105°C for the slide chambers unit)
Speed of ramping Up to 3°C/sec for all single- and dual-block Alpha units; Up to 1.2°C/sec for the Slide Chambers Alpha unit
Program Memory Capacity Up to 1,000 programs can be saved
Power 200 – 240V 50/60Hz
Dimensions (W x D x H) 19” x  23” x  10”
Weight 77 lb.

Included

Included with Tetrad 2 Thermal Cycler

  • MJ Research Tetrad Thermal Cycler | CAT# PTC-240
  • 96 Well Alpha Block – ALS-1296 (3qty)
  • 48/48 Well Alpha Block – ALS-1248 (1qty)
  • 208/230V Power Cord
  • User Manual
  • 30-Day Warranty
  • Please Note: System has been fully tested using our thermo-coupler well-to-well plate.   The system passed validation with a clean bill of health.

Notes

Technical Notes

The MJ Research Tetrad 2 is currently in stock and ready to ship. The instrument has been fully tested to meet the manufacturer’s factory specifications. Thermal Cycler will ship out via freight with a 1-3 turnaround time.  If you have any used lab equipment for sale and wish to get a trade-in value estimate please give us a call.

Video

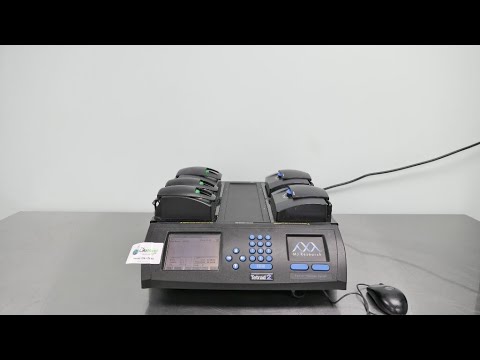

Tetrad 2 Thermal Cycler Video

MJ Research Tetrad 2 Thermal Cycler ID 15648
