Description
Description
Thermo Evolution 160 UV-VIS Spectrophotometer
The Thermo Evolution 160 UV-VIS Spectrophotometer provides research, teaching, and quality control level spectrometry with a user-friendly interface and data processing. This UV Vis Spectrophotometer is built for tough daily use, has a rugged design, and is an easy-to-read digital screen with keypad navigation. The Evolution 160 can be operated either with the onboard control panel or through a controlling PC with Vision Lite Software for greater flexibility and data processing. The VisionLite software collects measurements, analyzes the data, and exports it quickly. This spectrometer has three reading speeds: slow, medium, and fast, and a wavelength range of 190 nm- 1100nm.
Specifications
Specifications
Thermo Evolution 160 UV-VIS Spectrophotometer Specifications:
| Baseline Flatness | ±0.002A |
| Detector Type | Dual Silicon Photodiodes |
| Drift | (At 500 nm after 1-hour warmup) <0.0005A/Hr |
| Lamp | Tungsten, D2 |
| Noise | (RMS at 500 nm 60 consecutive measurements) 0.00020A at 0A at 260 and 500 nm
0.00030A at 1A at 260 and 500 nm 0.00040A at 2A at 260 and 500 nm |
| Optical Design | Dual-beam |
| Photometric Accuracy Instrument | ±0.002A at 0.5A
±0.004A at 1.0A ±0.008A at 2.0A |
| Photometric Display | -3A to +5A |
| Photometric Range | –2A to +3.5A |
| Photometric Repeatability | ±0.001A at 1A measured at 1.0A at 546 nm |
| Spectral Bandwidth | 2 nm |
| Stray Light | <1.0%T 198 nm (KCl) <0.05%T at 220 nm (NaI) <0.03%T at 340 nm (NaNO2) |
| Wavelength Accuracy | ±0.5 nm |
| Wavelength Data Interval | 0.2 nm, 0.5 nm, 1 nm, 2 nm, 5 nm |
| Wavelength Range | 190 nm – 1100 nm |
| Wavelength Repeatability | < ±0.2 nm |
| Wavelength Scan Speed | Slow, medium, and fast – up to 1600 nm/min |
| Dimensions | 19 x 16 x 9” |
| Weight | 22lbs |
| Power | 100–240 volts, 50–60 Hz. 180 VA |
Included
Included

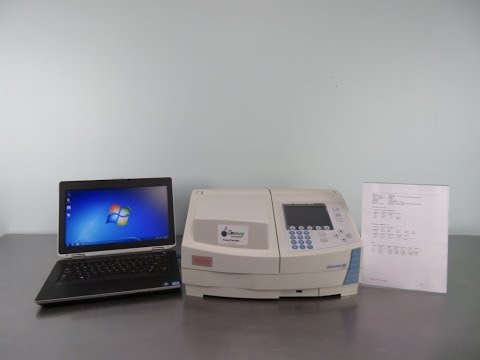

Included with Thermo Evolution 160 UV-VIS Spectrophotometer
- Thermo Evolution 160 UV-VIS Spectrophotometer
- Windows 7 Notebook with Vision Lite Software
- Sample Holder
- Operator’s Guide
- Validation Report with Clean Bill of Health
- Communication Cable
- 120V Power Cord
- 30-Day Warranty
Notes
Notes
Technical Notes
This Thermo Evolution 160 UV-VIS Spectrophotometer has been fully inspected and comes with current validations. All of our lab equipment comes backed with our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video
Thermo Evolution 160 UV-VIS Spectrophotometer Video
Thermo Evolution 160 UV VIS Spectrophotometer
