Thermo Haake A10 Chiller

$1,999

Availability: 2 in stock SKU: 24314-25546 Category:
View cart View Quote List

Description

Thermo Haake A10 Chiller

This Thermo Haake A10 Chiller is partnered with a Thermo SC100 standard circulator to bring you an easy-to-use, powerful pump for open and closed-loop applications. This A10 circulator setup has a temperature range of between -10°C and up to 100°C with digital programming for tight control. The temperature set points of the Haake SC100 controller can be swiveled to 90° for flexible viewing and accessibility in the lab and features real-time temperature adjustment for calibrations. Users can select their pump speed, with a maximum pressure of 300 mbar/4.35psi and a flow rate of 17L/min.

The Arctic A10 Thermo chiller base has corrosion-resistant stainless steel construction with a 6L volume, low noise, and a compact footprint. Thanks to the three-sided ventilation design, the Thermo Haake A10 Refrigerated Circulator can have up to two sides blocked and still perform at full refrigeration capacity. This Haake A10 circulating chiller is ideal for applications such as calibration, bioreactors, rotary evaporators, and condensers as well as testing and preparing samples and materials.

Specifications

Thermo Haake A10 Chiller and SC100 Circulator Specifications:

Capacity 6 L /1.58 gal.
Chamber Dimensions 5x5x6”
Controller Type SC100
Communications Digital
Temperature Range -10°C to +100°C
Temperature Stability 0.02°C
Cooling Capacity 240w
Flow Rate 17L/min.
Pump Type Force Pump, Suction Pump
Max. Pressure 300 mbar/4.35 psi
Dimensions 9x21x26”
Power 115v, 60hz, 11.5A
Weight 98lbs



Included

Included with this Thermo Haake Chiller

Thermo Haake A10 Chiller | CAT# 1525108 | MSRP: $6080.00
Stainless Steel Reservoir Lid
120V Power Cord (12A)
30-Day Warranty

Notes

Technical Notes

This Thermo Chiller has been fully inspected and is operating without issue. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.

Video

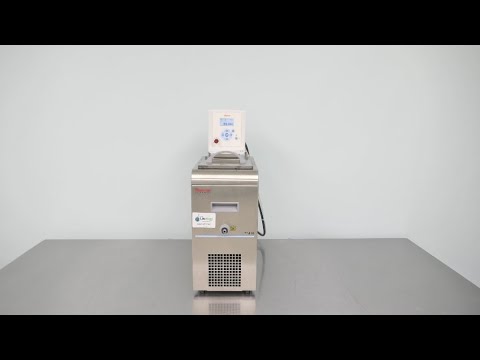

Thermo Haake A10 Chiller Video

Thermo Haake A10 Chiller ID 17151
