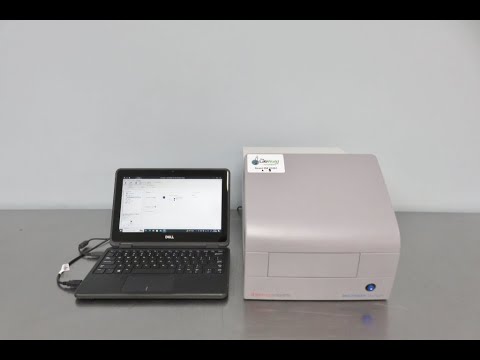

Thermo MultiSkan SkyHigh Plate Reader
The Thermo Multiskan SkyHigh Microplate Spectrophotometer is a reliable instrument that is easy to use and convenient for photometric research. This UV/Vis spectrophotometer is ideal for almost any photometric research application but particularly excels in DNA, RNA, and protein analysis and turbidity measurements. The Multiskan SkyHigh offers incubation and shaking within the instrument for cell-based or temperature-critical assays. It is controlled through a connected PC loaded with the robust Thermo Scientific SkanIt Software.
The Multiskan Sky High Spectrophotometer features a monochromator-based optical system that allows for selecting wavelengths from 200nm to 1000nm and is compatible with 6-48, 96—and 384-well microplates. This spectrophotometer is fast, producing a full spectrum of a well in less than 10 seconds, and a full 96-well microplate can be read with one wavelength in 6 seconds. For easy access to data, the Multiskan SkyHigh can access Thermo Fisher Connect and Microsoft One-Drive cloud-based tools.
Specifications
Specifications
Multiskan SkyHigh Specifications
| Light Source | Xenon Flash Lamp |
| Measure Speed | 96 wells: 6sec
384 wells: 10 sec |
| Plate Type | 6, 48, 96, and 384-well Plates, uDrop plates |
| Shaking | Linear |
| Software | SkanIt Software, Open License Software, Multi-Instrument Software |
| Spectral Scanning Speed | 10 sec. from 200 to 1000nm |
| Wavelength Selection | Monochromator |
| Accuracy (Photometric) | 1.0% + 0.003 Abs (0 to 2.0 Abs), 2.0% (2.0 to 2.5 Abs) at 450 nm |
| Bandwidth | <2.5nm |
| Linearity | 0 to 2.5 Abs, 2% at 450 nm |
| Resolution | 1nm |
| Wavelength Range | 200 to 1000 nm |
| Dimensions | 12x18x11” |
| Weight | 23 lbs |
| Electrical | 120V, 5A |
Included
Included
Included with the Thermo Multiskan SkyHigh Microplate Spectrophotometer
2020 Thermo MultiSkan SkyHigh Microplate Reader | CAT# A5119500 | MSRP: $15,670.00
Windows 10 Notebook Running Software
Validation Report
Communication Cable
User Manual
120V Power Cord
30-Day Warranty
Notes
Notes
Technical Notes
This microplate reader has been fully tested by our service team and comes with a current validation report. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video
Thermo Multiskan SkyHigh Video
Thermo Scientific MultiSkan SkyHigh Microplate Spectrophotometer Video ID 23501
