Description
Description
Thermo Neslab RTE Recirculating Chiller
The Thermo Neslab Scientific RTE is a refrigerated bath chiller circulator that covers a wide range of temperatures in a single unit. This recirculation chiller is highly reliable, with an industrial-grade suction and force pump that circulates fluid long distances for both open containers and closed loops. The RTE chillers use force suction pumps with a flow rate of 15lpm/4gpm.
This bath chiller meets various applications and has a temperature range of -24°C to 150°C, at or below ambient temperatures. The Thermo Chiller RTE has an easy-to-operate digital display with microprocessor control for accurate temperature stability. Users can set their temperature parameters and resolution, high and low-temperature alarm limits, and choose their fault conditions from this digital display. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Specifications
Specifications
Thermo Neslab RTE Chiller Technical Specifications:
| Temperature Range | -25°C to 150°C |
| Temperature Stability | ±0.01°C |
| Cooling Capacity | 500 watts at 20°C |
| Heater | 800 watts (RTE7)
1600 Watts (RTE 17) |
| Refrigerant | R134a |
| Bath Volume | 7.2 liters (1.9 gallons) (RTE 7)
18.1 liters (4.8 gallons) (RTE 17) |
| Pumping Performance | 15 LPM / 4 GPM |
| Pump Head | Max Head 16′ (4.9m) |
| Dimensions | 22x12x27” RTE 7
12x21x28″ RTE 17 |
| Bath Opening Dimensions | 6.62 x 7.25 x 6” (RTE 7)
8 3⁄4 x 8 1⁄8 x 9 ” (RTE 17) |
| Power | 115V | 60Hz | 12 amps (RTE 7)
115V | 60Hz | 16 amps (RTE 17) |
| Weight | 73 lbs. |
Included
Included
Included with this recirculating chiller
Please see individual SKU ID’s for a complete list of included items.
Notes
Notes
Technical Notes
This Chiller has been thoroughly inspected and is operating without issue. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

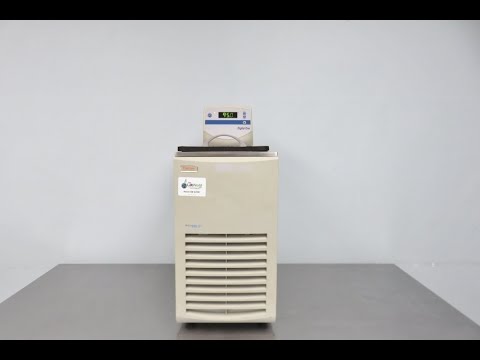

Thermo Neslab RTE 7 Recirculating Chiller Video
ID 21890
Thermo Neslab RTE 7 Recirculating Chiller ID 21890
ID 22381
Thermo Neslab RTE 17 with Digital One controller ID 22381
