Thermo Scientific Freezer – UXF50086
$4,999
- Description
- Specifications
- Included
- Notes
- Video
Description
Description

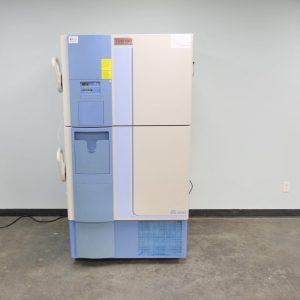

Thermo ULT Freezer – UXF50086
The Thermo Revco -80 ULT Freezer UXF50086 features superior temperature uniformity and speedy recovery after openings to protect your most critical samples. This Ultra-Low Temperature Freezer can swap between two power modes, the energy savings mode that conserves 15% of usage, or the high-performance mode when you need ultra-tight temperature uniformity. This power management system also protects against a wide range of voltage variations. This lab freezer’s filter can be easily removed and is washable to ensure optimal performance and lower the risk to your samples.
Entry to this ULT freezer can be operated with one hand and is lockable to prevent accidental tampering. The Revco UxF 500 Ultra-Low Temperature Freezer features rugged construction of corrosion-resistant powder-coated steel, vacuum panel insulation with water-blown insulation, and uses a pressure equalization port that lets users get in and out quickly. The interior is 24.1 cu ft in volume and will hold up to 500 2 inch boxes for a vial capacity of 50,000.
This ultra-low temperature freezer stores up to 15 years’ worth of data on the onboard computer. It even has a built-in whiteboard to quickly share notes with lab mates. The easy-to-use touchscreen navigates users through vital freezer information including health, detailed event logs, settings, and individual user profiles. Data from the onboard computer of the Revco UXF 50086D can be exported to be shared through the easily accessed USB port, you can even transfer settings to a different freezer.
Specifications
Specifications
-80 ULT Freezer UXF50086 Specifications:
Capacity | 24.1 cu. ft., 682L |
Capacity Shelf | 205 lb. (355kg) |
Dimensions (D x W x H) Interior | 34x27x51″ |
Footprint | 9.92 sq ft / 0.92 sq m |
2″ Box Capacity boxes | 500 |
Vial Capacity 2mL vials | 50,000 |
Data Outputs | RS-485, 4-20mA, dry contacts – standard |
Insulation | Vacuum Panel and Water Blown Foam |
Shelves | 4 |
Temperature Range | -50° to -86°C |
Door Opening Recovery | 28 min. |
Health Monitoring | On Screen,Log File |
Inner Doors | 5 |
Peak Variation at -80C | +3.8°/-5.6°C |
Warm up Time -80 C to -50C | 237 min. |
Setpoint Security Standard | Individual user names and passwords |
Dimensions (L x W x H) Exterior | 44x37x78″ |
Power | 208/230V/60Hz 9A (models ending in D)
or 115v, 60Hz, 16A (Models ending in A) |
Weight | 856 lbs |
Included
Included
Included with Thermo Revco -80 ULT Freezer
Thermo Revco UXF -80°C Ultra Low Temp Freezer | CAT# UXF50086 | MSRP: $23,480.00
Temperature Validation Report
Brand New Filter Installed
Brand New Battery Backup Installed
Shelves
208/230V Power Cord (9A)
30-Day Warranty
Please note: The orange data logger seen in the photos is not included. This is our testing tool to demonstrate a fully working system.
Notes
Notes
Technical Notes
This Thermo Revco UXF50086 comes with a current Temperature Validation Report with new filter and back up battery. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

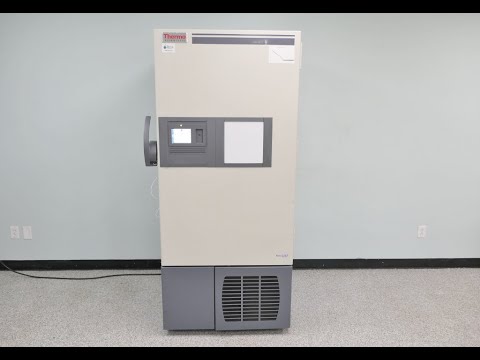

Thermo Revco -80 ULT Freezer UXF50086Video
Thermo Revco UXF50086D -86C ULT Freezer (208v) ID 24573
