Thermo Scientific BioMate 3S Spectrophotometer
- Description
- Specifications
- Included
- Notes
- Video
Description
Description
Thermo BioMate 3S Spectrophotometer
The Thermo BioMate 3S Spectrophotometer offers you accurate and dependable results in an instrument that takes up minimal space. This spectrophotometer features robust onboard software, tightly controlled stray light and noise akin to much larger instruments, but with simple operation, making it a go-to instrument. The BioMate 3S has dual-beam optics, a spectral bandwidth of 1.8 nm, striking a balance between sensitivity and resolution, and a monochromator design that maximizes energy throughput. This spectrophotometer uses a Xenon lamp that not only allows for UV-Vis measurements, but also has the benefit of being ready to go immediately, and won’t affect the chamber temperatures. The lamp for this spectrophotometer gives it a range of 190-1100 nm ideal for UV and near-IR measurements needed for life science or pharmaceutical samples. The dual-beam optics of this UV spectrophotometer gives you both sample and reference detection for simultaneous measurement with little drift.
The Thermo BioMate 3S Spectrophotometer comes with onboard software, operated from the upfront membrane keypad. From this keypad users of the Biomate 3s can access simple to complex pre-programmed assays such as RNA/DNA concentration and purity estimation, direct and colorimetric protein concentrations as well as routine UV-Visible measurements. Users can operate directly as a standalone instrument or connect to a controlling PC for more robust analysis and method transfer. Users can also use the USB connection to attach a printer or copy and store methods and data on a memory stick.
Specifications
Specifications
Thermo BioMate 3S Spectrophotometer Specifications:
Optical Design | Dual Beam – Internal Reference Detector |
Detector Type | Dual Silicon Photodiodes |
Spectral Bandwidth | 1.8 nm |
Lamp | Xenon Flash Lamp |
Spectral Bandwidth | 1.8 nm |
Wavelength Range | 190 – 1,100 nm |
Wavelength Accuracy | ±1.0 nm |
Wavelength Repeatability | ±0.5 nm |
Slew Speed | 11000 nm/min |
Scan Speed | 1-4200 nm/min |
Data Interval for Scanning | 0.1, 0.2, 0.5, 1.0, 2.0, 5.0 nm |
Photometric: | |
Photometric Linearity | Up to 3.5A at 260 nm |
Photometric Display | -0.1A – 4.0A; -1.5 – 125%T; ±9999C |
Photometric Accuracy Instrument | ±0.005A at 1.0A |
Noise | <0.00025 at 0.0A; <0.00050 at 1.0A; <0.00080 at 2.0A; |
Drift | <0.0005A/hr |
Stray Light | <0.08%T at 220, 340 nm (Nal, NaNO2); <1.0%T 198-200 nm (KCI) |
Dimensions | 12 x 16 x 10” |
Weight | 21lbs |
Power | Selected automatically, 100-240V; 50-60Hz |
Included
Included
Included with Thermo BioMate 3S Spectrophotometer
- Thermo BioMate 3S UV-Vis Spectrophotometer
- Multi-Cell Sampler Holder
- Windows 7 Notebook with VisionLite Software
- 120V Power Cord
- User Manual
- 30-Day Warranty
- System Validation Report with Clean Bill of Health
Notes
Notes
Technical Notes
This Thermo BioMate 3S UV-Vis Spectrophotometer has been fully inspected and is ready to ship. All of our lab equipment comes backed with our standard warranty. Should you have any questions about this or any of our spectrophotometers, please don’t hesitate to contact us.
Video
Video

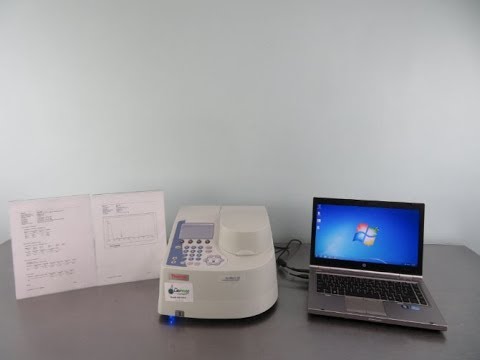

Thermo BioMate 3S Spectrophotometer Video
Thermo Scientific BioMate 3S Spectrophotometer for Sale
