Thermo SpeedVac SPD1010
- Description
- Specifications
- Included
- Notes
- Video
Description
Description
Thermo Speedvac SPD1010
The Thermo Scientific Savant SPD1010 integrated speedvac is an ideal choice and complete solution for drying DNA/RNA precipitates and concentrating both non-aggressive and aqueous samples. This speedvac concentrator is cost-efficient and quick, with a compact size and discreet operation. Drying and concentrating can be done in both plates and tubes with the use of interchangeable rotors, and it can be used for drying oligonucleotides and PCR samples in water/ethanol or isopropanol.
The solvent and solvent combinations the Thermo Scientific Savant SPD1010 supplies are Acetonitrile, Ethanol, Methanol, Methylene Chloride, Water, Acetonitrile and Water, and Methanol and Water. This speedvac concentrator is recommended for HPLC fractions with water/o.1% trifluoracetic acid and reversed-phase SPE eluents. Thermo Scientific provides a wide variety of products for any area in the lab.
The Thermo Scientific Savant SPD1010 speed vac provides an oil-free vacuum source, which prevents the need to add/change oil and a standard PTFE-coated Chamber. The SPD1010 model provides a luminous cover for chemical resistance and added heat sources to enhance drying times. This speedvac comes with dual timers for autonomous control of the heater and run time.
The Thermo Scientific Savant SPD1010 has an all-in-one design that’s easy to install and start using and consists of four distinct components: a concentrator bowl, a refrigerated trap that goes as low as -50°C, a vacuum gauge, and a diaphragm pump. The Model SPD1010 by Thermo Scientific is easily programmable and includes a digital display for examining and setting parameters (time, temperature vacuum). The SPD1010 has a capacity of up to 100mL, and it features a joined design built for easier plug-in and control. This speed vac also includes a vacuum control for vacuum ramping and an extreme level setting to amend drying times and prevent the bumping of various solvent mixtures.
Specifications
Specifications
Thermo Scientific Savant SPD1010 Speedvac Specifications:
Temperature Range | 45° to 80°C (Metric) 4L Description Holds 0.5 to 500ml flasks and shallow-well microplates |
Displacement | 36 L/min at 60 Hz
30 Liter / minute at 50/60Hz |
Concentrator Volume | 0.4-100ml |
Maximum Capacity | 120 x 1.5/2 ml tubes, or 2 shallow well microplates, rotor dependant |
Maximum Vacuum | <10 Torr 913mbar, 1.3 kPA) |
Vacuum Control | 30 to 5.1 torr |
Ramp Rate | 1 to 5 |
Pump Type | ETFE oil-free diaphragm pump ramp rate 1 to 5 |
Cold Trap Capacity | 4L |
Operating Temperature | -50°C |
Voltage | 115V 50/60Hz |
External Dimensions | 26x29x14” |
Weight | 140 lbs |
Power | 115v, 12a, 60hz, |
Included
Included
Included with Thermo Scientific Savant SPD1010 Speedvac
Please see individual SKU ID’s for a complete list of included items.
Notes
Notes
Technical Notes
This Thermo Scientific Savant SPD1010 Speedvac has been thoroughly tested and performed to expectations. All of our lab equipment comes backed with our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

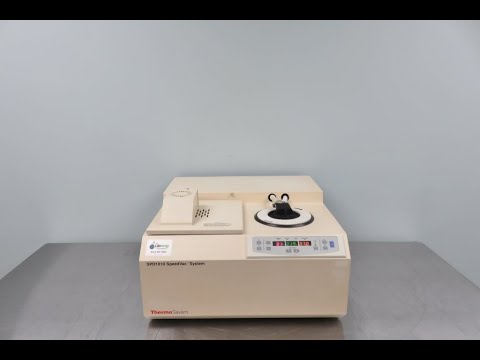

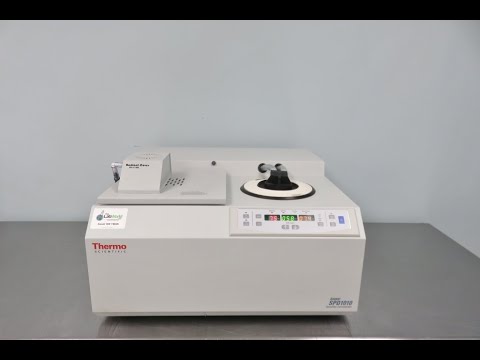

Thermo Scientific Savant SPD1010 Speedvac Video
