Description
Description
Thermo TSX600 ULT Freezer
The Thermo TSX600 ULT Freezer is a high-performance ultra-low temperature freezer with energy-saving features and reliable sample protection. The Thermo TSX freezer series features the V-Drive system that continually adapts to everyday lab usage and outside conditions, kicking in extra cooling power when needed and cycling down to a steadier delivery when access is slower. This translates to a lower operating cost and a 50% savings over conventional models. This reduction in energy usage provides an energy cost of about 8.7 kWh/day. This quiet system runs about 45.5 dba, about the same as a refrigerator.
The TSX600 stores up to 600 2-inch boxes in the 28.8 cu. Ft. volume chamber and has a warmup time of 303 minutes. The Thermo TSX freezer’s chamber is cooled by forced air circulation, environmentally friendly refrigerants, and insulation and can recover in about 24 minutes after opening. On the front of the door is a touch screen fully color command center that provides vital system information, including event logs and current temperature readings. This microprocessor will also store up to 15 years’ worth of temperature and event data that can be exported as needed via USB. This also allows users to transport settings from one freezer to another for consistency across the lab. Should you have any questions about this ultra-low temperature freezer, please don’t hesitate to contact us.
Specifications
Specifications
Thermo TSX600 Specifications:
| Temperature Range | -50°C to -86°C |
| Warm-up Time -80 C to -50C | 303 min. |
| Capacity Shelf | 125 lb./ 56.8 kg |
| Condenser Type | Micro-Channel, Forced-Air Cooled |
| Door Opening Recovery | 24 min. |
| Capacity | 28.8 cu. ft. / 815 L |
| Box Capacity | 2 in. Boxes (600) |
| Vial Capacity | 60,000 x 2mL |
| Internal Dimensions | 27x33x51” |
| Footprint | 11.38 sq. ft. /1.06 sq. meters |
| Dimensions Exterior | 38x40x78” |
| Energy Usage | 8.7kWH/day (standard), 10.2kWH/day (high-performance) |
| Power | 208-230 V 50/60 Hz, 4.0 A |
| Weight | 854 lb./ 388 kg |
Included
Included
Included with Thermo TSX600D ULT Freezer
Thermo TSX Ultra Low Freezer | CAT# TSX600D | MSRP: $31,880.00
Temperature Validation Report
NEW Battery Backup
NEW Filter Installed
Shelves
208/230V Power Cord (4A)
30-Day Warranty
Please Note: The Orange datalogger seen in photos is not included. This is our testing equipment to demonstrate a fully working system.
Notes
Notes
Technical Notes
This unit has been fully tested by our service team with a clean bill of health. Orange Data-Logger seen in photos is not included, this is our testing equipment. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

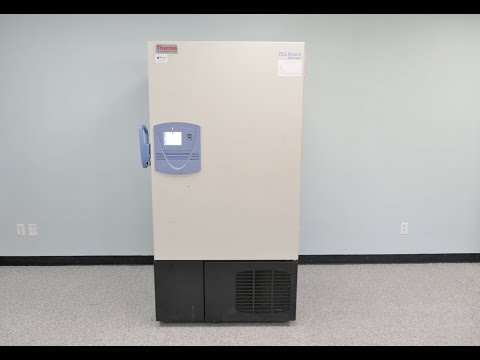

Thermo TSX600D ULT Freezer Video
Thermo TSX600 Ultra Low Freezer id 20685
