Description
Description
Thermo Varioskan LUX Multimode Microplate Reader
The Thermo Varioskan LUX is a Multimode Microplate Reader that offers users a flexible range of measurement technologies with a user-friendly setup. This Varioskan plate reader handles Absorbance and Fluorescence Intensity (top and bottom). This LUX has an absorbance wavelength range of 200-1000nm, and a FI range of 200-1000nm ex and 270-840nm em. The Varioskan LUX is also modular so this powerful plate reader can expand as your needs change.
The smart safety controls and automatic dynamic range selection of this Varioskan LUX help simplify workflow and help avoid experimental errors. To help optimize assays, there’s also a spectral scanning function, and automated instrument calibration with self-diagnostics to keep the instrument in tip-top shape.
The Thermo Varioskan LUX is paired with the powerful and user-friendly SkanIt Software, providing excellent usability and flexibility. This software has time-saving features such as a virtual pipetting tool to plate your plate layout, continual measurement data saving, and simplified data export with multiple file options. This robust software shows real-time spectra and kinetic curves during the measurement has built-in calculations for data analysis and produce thorough result reports with traceability to runtime actions and settings.
Specifications
Specifications
Specifications of Thermo Varioskan LUX Multimode Microplate Reader:
| Detector Type | Photomultiplier Tube |
| Light Source | Xenon flash lamp |
| Measurement Technology | Absorbance and Fluorescence intensity |
| Measurement Type | End-point, kinetic, spectra, multipoint and kinetic spectra |
| Plate Type | 6 – 1536 well plates (absorbance 6 – 384 well plates) |
| Wavelength Selection | Absorbance: double monochromators; Fluorescence intensity: double excitation and emission monochromators; Double monochromators for spectral scanning |
| Absorbance | |
| Read-out Range | 0 – 6Abs |
| Wavelength Range | Absorbance: 200 – 1000nm |
| Linearity | 0 – 4Abs (96-well plate) at 450nm, ± 2%
0 – 3Abs (384-well plate) at 450nm, ± 2% |
| Accuracy | 0.003Abs or ± 2%, at 200 – 399nm (0 – 2Abs)
0.003Abs or ± 1%, at 400 – 1000nm (0 – 3Abs) |
| Precision | SD < 0.001Abs or CV < 0.5%, at 450nm (0 – 3Abs) |
| Fluorescence | |
| Fluorescence intensity: | Excitation: 200 – 1000nm, Emission: 270 – 840nm |
| Reading Options | Top and bottom |
| Read-out Range | 0-6 Abs |
| Sensitivity | Fluorescence intensity (top reading): < 0.4 fmol fluorescein/well (black 384-well plate)
Fluorescence intensity (bottom reading): < 4 fmol fluorescein/well, (clear bottom black 384 square well plate) |
| Dynamic Range | Fluorescence intensity: top reading > 6 decades, bottom reading > 5.5 decades |
| Incubator Temperature | up to 45°C |
| Shaking | Orbital |
| Measurement Speed | Reads a 96-well plate in 15 sec., a 384-well plate in 45 sec., and a 1536-well plate in 135 sec. (minimum times) |
| Spectral Scanning Speed | < 2.2 s/well 400 to 500 nm, 1 flash, 2 nm Step |
| Dimensions | 22x21x21” |
| Weight | 131lbs |
| Power | 100-240vac, 50/60hz,200va |
Included
Included
Includes with the Varioskan LUX
2019 Thermo Varioskan LUX Multimode Microplate Reader | CAT# VL0000D0 | MSRP: $53,030.01
Windows 10 Laptop Running SkanIt Software
Absorbance Validation Report
Fluorescence Validation Report
Absorbance Module Installed
Fluorescence Module Installed (Top/Bottom)
Communication Cable
120V Power Cord
User Manual
30-Day Warranty
Notes
Notes
Technical Notes
Varioskan Lux has been fully tested by our service team with a clean bill of health.
Video
Video

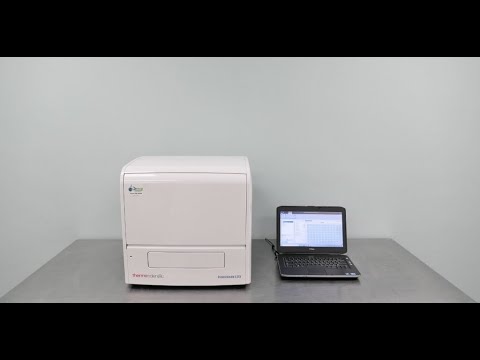

Video of Thermo Varioskan LUX Multimode Microplate Reader
Varioskan Lux ID 14590
