Thermotron SM-8 Humidity Test Chamber
thermotron environmental chamber rear
thermotron temperature chamber right

Thermotron SM-8 Humidity Test Chamber

0 out of 5
( There are no reviews yet. )

Availability: Out of stock SKU: 13180 Category:

Description

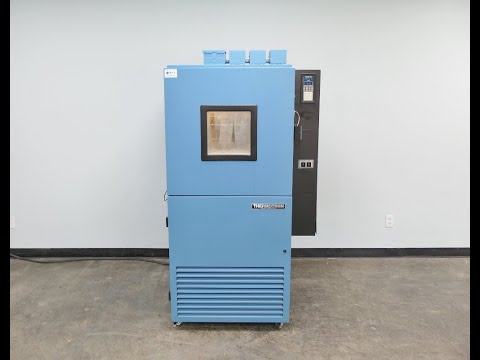

Thermotron SM-8 Humidity Test Chamber

The Thermotron SM-8 Humidity Test Chamber offers users a controlled simulated environment for testing applications. This environmental chamber uses hermetically sealed compressors to create temperature changes ranging from -68°C up to 177°C, and set up rH between 20 and 98%. The 8 cu ft chamber has a gasketed door with a heated window that provides a clear view of the testing area and sample progress. Set on casters, the Thermotron test chamber can be placed easily where it’s needed most.

Parameters are set from the 2800 microprocessor command center. Navigation is managed through a keypad, allowing users to choose set-ups on two channels, creation and editing programmed runs, creating timed operations, and set alarm parameters. The control system will hold up to 10 programs in memory, with up to 16 loops per program, and each loop can be repeated up to 255 times. The maximum interval of time you can select is 24hours and 59 minutes.

Specifications

Thermotron SM-8 Humidity Test Chamber Specifications:

Temperature and Humidity -68°C to 177°C (-90°F to 356°F)
Temperature Pull Down from 23°C -40C @25 min

-53.9°C @ 40mins

– 67°C @ 60 min
Volume 8 cu ft / 227 lt
Internal Dimensions 23 x 23 x 24”
rH 20-95%
Programming 10 programs in memory, with up to 16 loops each

256 programmable intervals total with 4 auxillary outputs
Dimensions 49x43x77
Weight 875lbs
Power 208v, 60Hz, 7.3amp





Included

Included with the Temperature Humidity Chamber

Thermotron Humidity Test Chamber Catalog # SM-8
Shelves
Temp. Validation Report
208V Power Cord
30-Day Warranty

Please note the orange data logger seen in the photos is part of our testing equipment and is not included.

Notes

Technical Notes

This temperature humidity test has been fully inspected and comes with current temperature reports. Please note the orange data logger seen in the photos is part of our testing equipment and is not included. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
