Description
Description
Virtis Advantage Freeze Dryer
The VirTis Advantage Plus EL -85 Benchtop Freeze Dryer offers capacity and performance typically found in a larger-scale lyophilizer in a compact benchtop model. This lyophilizer has a shelf temperature range between -50° to +60°C with a condenser temperate as low as -85°C. The VirTis Advantage Plus EL -85 has manifold and tray-type drying capabilities and dual compressors with 1/3 and 3/4 hp power. This lyophilizer is microprocessor controlled through the easy-to-use Wizard 2.0 controller, with a 16-line by 35-character backlit display and a synoptic screen for precise control. This digital control screen can store up to 16 user-defined protocols, saving time and effort.
The VirTis Advantage Plus EL -85 Benchtop Freeze Dryer is partnered with a Pascal 2005 rotary vane vacuum pump. This vacuum pump is oil-sealed and has an anti-suck back system to ensure the pump’s tightness while in operation. The Edwards pump has a speed of 3.53 cfm at 60Hz, and a noise level of 48 dB(A) @ 50 Hz
Specifications
Specifications
Virtis Advantage Plus EL -85 Freeze Dryer Specifications:
| Condenser temperature | -85°C |
| Shelf Temperature Range | -55°C to + 60°C |
| Shelf Pull Down Time from 20 °C to -40 °C | ≤ 30 Mins |
| Interior Dimensions | 12x15x13” |
| Condenser Capacity | 6 liters |
| Refrigerant | CFC free R508B, R407C |
| Dimensions | 36 x 21 x 28 in |
| Shelf Size | 10.75 x 14 in (27.3 x 35.6 cm) |
| Dimensions | 25 x 25 x 29 |
| Weight | 320 lbs |
| Power | 208/230V, 15 amp, 60 hz, Phase 1 |
| Pascal 2005, SD Vacuum Pump Specifications: | |
| Pumping speed CFM | 3.53 cfm at 60Hz
2.94 cfm at 50Hz |
| Power | 100-120/200-230 VAC 50/60 Hz, 1 Ph, |
| Ultimate pressure | 5 · 10-4 hPa | 3.75 · 10-4 Torr | 5 · 10-4 mbar |
| Ultimate pressure with gas ballast | 1 · 10-2 hPa | 7.5 · 10-3 Torr | 1 · 10-2 mbar |
Included
Included
Included with Virtis Advantage Freeze Dryer
Virtis Advantage Freeze Dryer | ES Benchtop Model | CAT# 361949
Vacuum Pump with Hose 120V (6A)
User Manual
208/230V Power Cord (15A)
30-Day Warranty
Notes
Notes
Technical Notes
This VirTis Advantage Benchtop Freeze Dryer has been fully inspected and reached its lowest temperature without issue. All of our lab equipment comes backed with our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

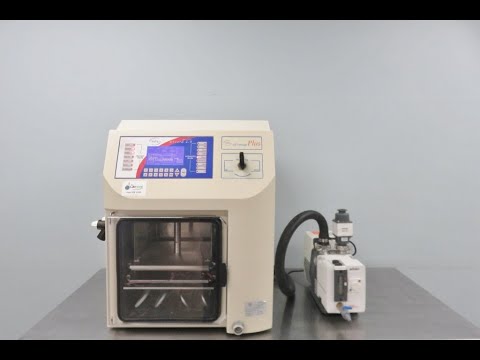

VirTis Advantage Freeze Dryer Video
Virtis Advantage Freeze Dryer ID 22356
