VWR Cooling Circulator 1173PD

Availability: Out of stock SKU: 17761 Category:

Description

VWR Cooling Circulator 1173PD

The VWR Cooling Circulator 1173PD provides powerful cooling that’s reliable and low-cost to operate. This VWR recirculating chiller has a ½ HP compressor, for increased cooling capacity running at 750W at 0°C.  This 1.1-gal VWR chiller has a temperature range of between -10 to 40°C / -4 to 104°F  that can be dialed in from the upfront control panel, and is shown on the brightly lit digital display. From this information center, users can also check the pressure/ flow rate with the touch of a button in real-time.

The VWR Recirculating chiller 1173PD has a flow rate of up to 3.75 lpm/ 1gpm, powered by a positive displacement pump with a maximum adjustable pressure of 100 psi. Positive displacement pumps may have less flow than their magnetic centrifuge pump counterparts, however, this allows users a higher pressure for more demanding applications such as laser etching, reaction vessels, plasma etching, AA furnaces, ICP, rotary evaporators, condensers, and vacuum systems. Using a VWR recirculating chiller instead of a tap water solution helps to cut down on water consumption, and maintenance of scale buildup.

Specifications

1173PD Cooling Circulator Specifications:

Volume 4.2 liters/ 1.1 gal
Temperature range -10 to 40°C / -4 to 104°F
Pump Positive displacement
Maximum Pressure 20-100 psi (6.9 bar)
Cooling Capacity 1400 watts @ 20°C

990 watts @ 10°C

530 watts @ 0°C

Compressor 1/3 HP
Flow Rate 3.85 lpm/ 1 gpm
Dimensions 28 x 15 x 23”
Weight 160 lbs
Power 120 volts 60 Hz, 13.1A



Included

Included with VWR Cooling Circulator

VWR Chiller | Recirculating Chiller | CAT# 13271-196
120V Power Cord (13A)
30-Day Warranty

Notes

Technical Notes

This unit has been fully inspected and is operating without issue. All of our lab equipment comes backed with, our standard warranty. Should you have any questions, please don’t hesitate to contact us.

Video

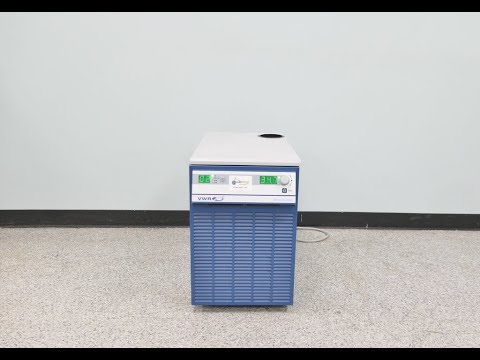

VWR Cooling Circulator 1173PD Video

VWR Chiller 1173pd ID 17761
