Watson Marlow 504U Peristaltic Pump

0 out of 5
( There are no reviews yet. )

Availability: Out of stock SKU: 6795 Category:

Description

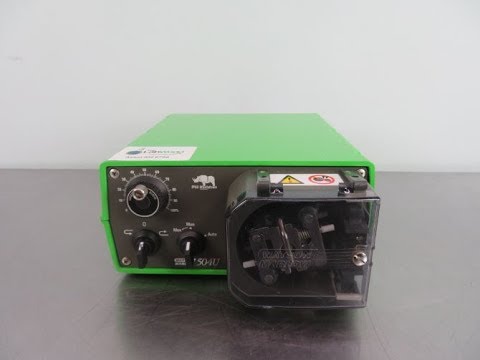

Watson Marlow 504U Peristaltic Pump

The Watson Marlow 504U is a peristaltic pump that provides users with consistent and reversible pumping, contained in washdown rated housing. This instrument has a motor speed of up to 220 RPM or 55 RPM that can be controlled from the upfront dial knob. From the analog control panel, users can also instantly switch the direction of the pump’s direction for a suction option as well. At the rear is a 6 pin connection for auto and remote control, enabling start and stop functions   These Watson Marlow pumps are IP55 rated, so it’s almost completely protected from particles and will tolerate low-pressure jets of water from any direction during a washdown.

Specifications

504U Peristaltic Pump Specifications:

Max Rotor speed 220 RPM
Shaft torque 2.2Nm
Control Range 100:1
Ambient Temperature Tolerance while operating 5°C- 40°C
Noise <70 dBA at 1m
Dimensions 16x10x5 in
Weight 21 lbs
Power 100-120/220-240V 50/60Hz, 100VA

Included

Included with Watson Marlow Peristaltic Pump

ID’s for a complete list of included items.

Notes

Technical Notes

These units have been fully inspected and reached their maximum speed without issue. Tests were run in both directions and all components ran without issue. All of our lab equipment comes backed with our standard warranty. Should you have any questions please don’t hesitate to contact us.

Video

Watson Marlow 504U Peristaltic Pump – 220 RPM Video

ID 6795

Watson Marlow 504U Peristaltic Pump 220 RPM For Sale
