Welch Dry Vacuum Pump
The Welch 2511B-01 is an oil free, low maintenance Vacuum Pump. The PTFE piston sleeve diagram pump head ensures low maintenance and a long-life expectancy of about 2,000 to 3,000 hours before service. The compact handled design allows this pump to be highly portable unlike a heavier scroll pump. It pumps atmospheric pressures down to 219 mmHG with a free air displacement of 11 liters/minute. The manufacturer recommends running the pump for a few minutes prior to use to allow the interior to warm up which improves the ability to handle humid air. This pump can also be used as a low-pressure air compressor with a maximum pressure of 33 PSIG however for continuous pressure it stables around 10 PSIG. Common applications for this vacuum pump is vacuum drying in non-corrosive applications.
Specifications
Specifications
Specifications of dry vacuum pump
| Catalog Number | 2511B-01 |
| Free Air Displacement,
CFM (L/min) |
0.39 (11) |
| Max. Continuous Pressure
PSIG (Pascal) |
10 (104) |
| Max. Intermittent Pressure
PSIG (Pascal) |
33 (3.3 x 104) |
| Max. Vacuum, InHg (mmHg) | 21.3 (219) |
| Tubing Needed, I.D. in. | 1/4 |
| Weight, pounds (kg) | 5 (2.3) |
| Electrical Requirements | 115V, 60Hz, 1Ph,1.6 amps
|
| Horsepower | 0.03 hp |
| Exterior Dimensions (Inches) | 8x9x5” |
| Weight (Pounds) | 5lbs |
Included
Included
Included with dry pump
- Welch Dry Vacuum Pump | CAT# 2511
- 120V Power Cord
- 30-Day Warranty
- Please Note: Vacuum Meter seen in photos is not included. This is our testing equipment to demonstrate a fully working diaphragm pump.
Notes
Notes
Notes on Welch Vacuum pump
This vacuum pump has been fully tested by our service team with a clean bill of health.
Video
Video

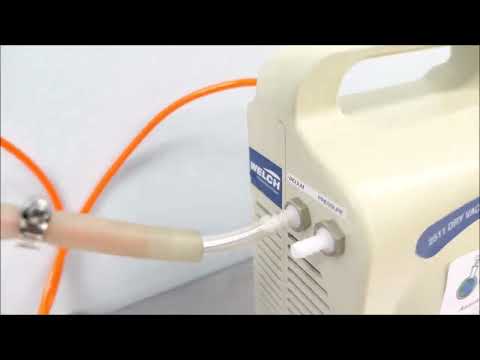

Video of Welch Dry Vacuum Pump
Welch Dry Vacuum Pump ID 15943
