Description
Description

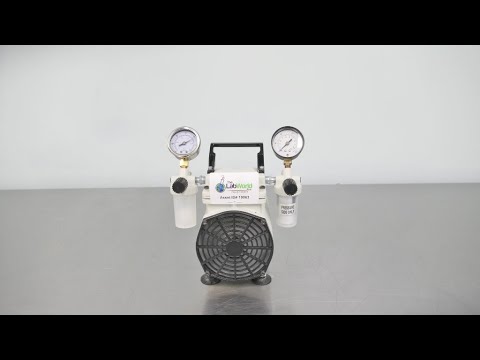

Welch Vacuum Pump
The Welch Vacuum Pump Model 2522B-01 provides reliable oil-free operation, with adjustable vacuum and pressure. This Vacuum pump is an ideal choice for applications requiring aspiration, desiccation, SPE, replace water aspiration, vacuum filtration, and vacuum drying. The WOB-L piston diaphragm pump has an ultimate pressure of 100 Torr, and vacuum of 26”Hg, with a 1/8th horsepower drive and an adjustable ballast. This vacuum pump is quiet to operate with a muffler to dampen noise and a filter to clean the air discharge. The Welch Vacuum Pump Model 2522B-01 also features a float ball water trap to seal off the pump and prevent accidental water ingestion, with intake and exhaust catch jars.
Specifications
Specifications
Welch Vacuum Pump Specifications
| Free Air Displacement | |
| CFM (L/min)@60Hz | 0.76 (22) |
| Max Continuous Pressure (PSIG) | 100 |
| Maximum Vacuum In. Hg. (Torr) | 25.6 (100) |
| Motor Horsepower | 1/8 Hp |
| Dimensions | 10x9x11” |
| Weight | 14 lbs |
| Electrical Requirements | 115V, 60Hz, 3.9A |
Included
Included
Included with this Welch Oil-less Pump
Welch Vacuum Pump | Diaphragm Oil-less Pump | MSRP: $757.00
120V Power Cord (4A)
30-Day Warranty
Notes
Notes
Technical Notes
This vacuum pump has been thoroughly inspected by our service team and is operating without issue. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video
Welch Vacuum Pump Video
Welch Vacuum Pump Video ID 19063
