ABI MagMax Automated DNA Extraction System
The ABI MagMax Express 96 is a Magnetic Particle Processor with a reliable, speedy, and cost-efficient instrument for magnetic-bead-based extraction of nucleic acids. Developed to extract both genomic and viral nucleic acid from virtually any sample, this DNA extraction system handles your throughput needs automatically without a computer, freeing up researchers to complete other tasks. Utilizes 96 permanent rods with independent movement control, the Magmax collects and deposits beads from a solution into plates with reagents, prepping them for the next steps of isolation giving you superior washing, elution efficiency, and swift processing over other methods.
The magnetic rods of this DNA separator are covered with disposable tip combs, and function without the use of aspiration or dispensing parts or devices, eliminating cross-contamination and carryover. During incubation and washing, this purification system also shakes the samples enabling a quicker reaction, and a more efficient wash. Protocols for the ABI MagMax are accessible via an easy-to-navigate touchscreen and onboard software or maybe controlled when attached to a PC using KingFisher PC Software.
Specifications
Specifications
Applied Biosystems MagMax Express Specifications:
| Processing Volume | 20-1000 ul |
| Recommended filling volume | 96-well plates:
– MagMAX Express 96 plate (20 – 200 µl) – PCR plate (20 – 100 µl), skirted – Deep well plate (100 – 1000 µl), squared well |
| Capacity | 96 samples/run |
| Magnetic Particle size | > 1um |
| Heating Temperature | 4°C above ambient to 96°C |
| Heating Accuracy | ± 6°C, up to +80°C with MagMAX Express 96 plate, up to +96°C with
PCR plate, instrument in RT |
| Format: | 96 deep wells |
| Product Size: | 1 each |
| Input Voltage: | 100-240 VAC |
| Elution Volume – max: | 1 ml |
| Elution Volume – min: | 75 µl |
| Isolation Technology: | Magnetic Bead |
| Sample Type: | Liquid Samples (e.g. Serum), Buccal Samples, Bacteria, FFPE & Fixed Samples, Blood, Tissue, Viral Samples, Plant Samples, Cells |
| For Use With: | MagMax Express |
| High Throughput Compatibility: | Automated Protocols, High Throughput-Compatible |
| Power | 115V 50/60Hz |
| Dimensions | 28 x 24 x 15” |
| Weight | 60 lb |
Included
Included
Included with this DNA Extraction System
Please see individual SKU’s for a complete list of included items.
Notes
Notes
Technical Notes
This system is the predecessor to the Thermo Kingfisher Flex system. This nucleic acid extraction system has been fully inspected and is operating without issues. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

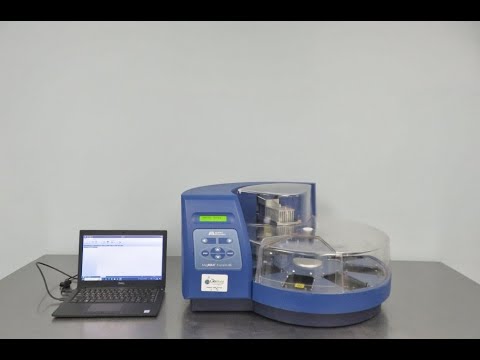

ABI MagMax Express 96 Video
ID 21473-22785
ABI Magmax Express 96 Video ID 21473
ID 22744

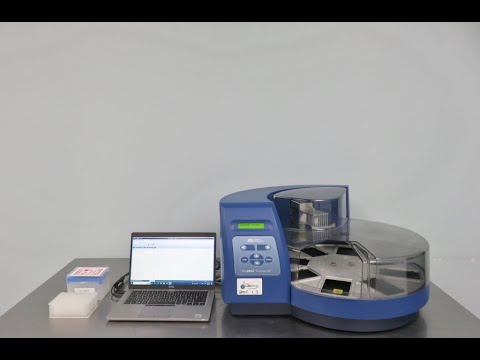

ABI MagMax Express 96 DNA Extractor Video ID 22744
