Agilent Stratagene Mx3005P qPCR System
The Stratagene MX3005P qPCR system from Agilent Technologies is a reliable and flexible PCR machine ideal for applications such as microarray data validation, gene expression analysis, DNA methylation analysis, SNP genotyping, pathogen detection, and more. The system features a single light source, a Quartz-tungsten halogen lamp and a single Photomultiplier tube (PMT), providing linear detection over 10 orders of magnitude, and uniform, repeatable results every time.
The thermal system is Peltier-based, with a 96 well block and a temperature range of 25°C to 99 °C. For multiplexing capabilities, the MX3005P uses a filter wheel with the option of five filter sets (4 filter sets on the MX3000P), compatible with most dyes. Assays are streamlined thanks to the scanning fiber optic head design which reduces the need for signal correction or calibration steps. The Stratagene MX3005P is an excellent choice for researchers that need a trusted and reliable system at a great price that fits their budget.
The accompanying MxPro software is easy to use, combining powerful analysis algorithms with intuitive features and organization for an excellent, streamlined user experience that requires little training. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Specifications
Specifications
Stratagene Mx3005P Specifications
| Excitation Source | Quartz-tungsten halogen lamp |
| Detector | Photomultiplier Tube (PMT) |
| Filters | Excitation and emission filter wheels with five filter sets (MX3005P)
Excitation and emission filter wheels with four filter sets (MX3000P) |
| Thermal System | Peltier-based, 96-well block thermal cycling system |
| Thermal System Temperature Range | 25°C to 99°C |
| Operating environment | 18°C to 35°C, up to 85% non-condensing humidity |
| Multiplexing capabilities | 5 dyes per well (MX3005P)
4 dyes per well (MX3000P) |
| Sample container configurations | 200µl tube format, configured as 96-well plates, strip tubes, or single tubes |
| Reaction volume per tube | 10µL to 50µl |
| Software | MxPro v4.10 |
| Dimensions | 15x22x18” |
| Weight | 45lbs |
| Electrical | 100-120V, 50/60Hz, 10A
220-240V, 50/60Hz, 5A |
Included
Included
Included with the Agilent qPCR Machine
Please see individual SKU’s for a complete list of included items.
Notes
Notes
Technical Notes
This qPCR system has been fully tested and is operating without issue. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video
Stratagene Mx3005P Video
ID 22716

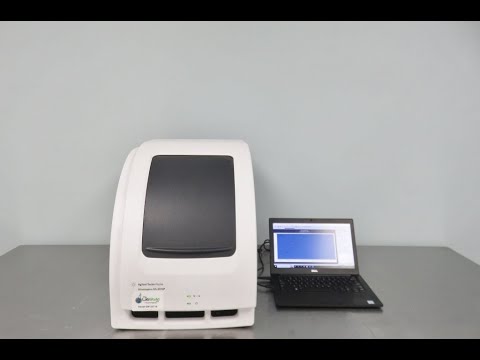

Agilent Stratagene MX3005P qPCR System Video ID 22716
ID 22715-24031

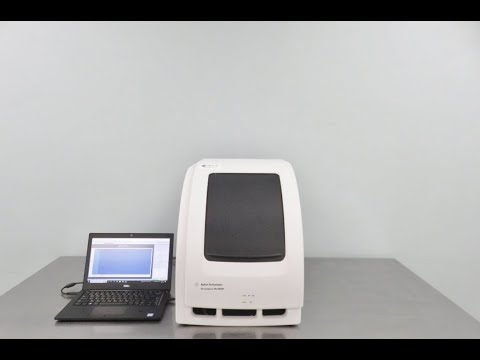

Agilent Technologies Stratagene MX3005P Video ID 22715
