BioTek Cytation 5 Imaging Reader with Stacker
The Biotek Cytation 5 is an imaging system for 6—to 384-well microplates, slides, Petri dishes, and flasks. This Imaging Plate Reader provides users with fluorescence, brightfield, H&E, and phase-contrast microscopy. The 6-position objective can give users 2.5x to 60x magnification, and this model comes with phase objectives at 4x, 10x, 20X, and 40x and a phase contrast slider. The filter cubes cover DAPI, GFP, RFP, and Laser Autofocus.
This Cytation 5 plate imager has other great features, such as linear, orbital, double orbital shaking and incubation up to 65°C, dispenser compatibility, and joystick control. Joystick control lets users control the focus like a traditional microscope rather than typing in values for more granular control and navigation. The system can be controlled through the robust Gen5 software that allows users to capture images and analyze them efficiently.
This imaging system includes a Biostack Automated Microplate Stacker, built to automate your workflow. This robot handler holds 10-30 plates and handles rapid exchanges, increasing your throughput.
Specifications
Specifications
Biotek Cytation 5 Imaging Microplate Reader Specifications:
| Supported Vessels | Standard 6-, 12-, 24-, 48-, 96-, and 384-well microplates with 128 x 86 mm geometry, 1536-well plates (for imaging only), Take3 and Take3 Trio Micro-Volume Plates, microplate slides, T25 cell culture flasks (with adapter), and 35 mm, 60 mm, and 100 mm Petri dishes (with adapter). Maximum Plate Height: 1.0″ |
| Imaging mode | Fluorescence, phase contrast, brightfield, and phase contrast |
| Imaging method | Single color, multi-color, montage, time lapse, z-stacking |
| Image processing | Z-projection, digital phase contrast, stitching |
| Camera | Sony CMOS, 16-bit grayscale, standard or WFOV |
| Objective capacity | 6-position automated turret for user-replaceable objectives |
| Compatible Objectives | 1.25x, 2.5x (2.25x eff),2.5x (2.75x eff), 4x,10x, 20x, 40x, 60x |
| Compatible Phase objectives | 4x, 10x, 20x, 40x |
| Image filter cube capacity | 4 user-replaceable fluorescence cubes plus brightfield channel |
| Compatible Imaging filter cubes | DAPI, CFP, GFP, YFP, RFP, Texas Red, CY5, CY7,Acridine Orange (ACR OR), CFP-YFP FRET, propidium,Iodide, chlorophyll, phycoerythrin, CY5.5, TagBFP, Alexa568, Ex377 / Em647 |
| Compatible Imaging LED cubes | 365, 390, 465, 505, 523, 590, 623, 655, and 740 nm |
| Automated functions | Autofocus, auto LED intensity, auto exposure |
| Autofocus method | Image-based autofocus |
| Positional controls | Software control
Joystick control |
| Dimensions | 42x17x27” |
| Weights | 50 lbs |
| Power | 120v |
Included
Included
Included with Cytation 5
BioTek Cytation 5 Imaging Reader | CAT# CYT5PV | MSRP: $121,197.00
Windows 10 Computer Workstation Running Gen5 ver 3.12
Gas Mixer
Brightfield Imaging Installed
Color Brightfield Imaging Installed
Fluorescence Imaging Installed
DAPI, GFP, RFP and Laser Auto Imaging Filters Installed
4x, 10x, 20x, 40x PL FL Objectives Installed
Objective Setup Plate
Biostak Plate Stacker
Communication Cable
User Manual
120V Power Cord
30-Day Warranty
Notes
Notes
Technical Notes
This Plate imager has been fully inspected and is operating without issue. A self-test, autocalibration, and verification were run and the system has a clean bill of health. Please read through the includes carefully to make sure this system meets your requirements. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

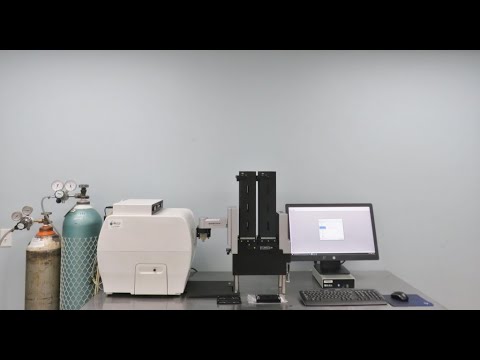

Biotek Cytation 5 Video
BioTek Cytation 5 Imaging Reader with Stacke ID 22047
