Description
Description
CHAI Open QPCR System
The CHAI Open qPCR System A1005 is an advanced and versatile qPCR platform designed for precise and reliable nucleic acid detection. This innovative system features an open architecture that allows for seamless integration with a wide range of reagents and assays, enabling researchers to customize their experiments according to their specific needs.
With its intuitive touchscreen interface and powerful software, the CHAI Open qPCR System A1005 offers unparalleled ease of use and flexibility. It supports up to six independent channels, enabling simultaneous detection of multiple targets in a single run. The system also features a unique temperature control mechanism that ensures consistent and accurate temperature control across all 16 wells.
This qPCR system is equipped with advanced optics that enable rapid and sensitive detection of nucleic acid targets. Its high-precision thermal cycling and detection system can generate results in as little as 30 minutes, making it ideal for time-sensitive experiments. The system also features a built-in diagnostic tool that monitors system performance and ensures reliable and accurate results.
Whether you are conducting basic research, clinical diagnostics, or agricultural testing, the CHAI Open qPCR System A1005 is an essential tool for accurate and efficient nucleic acid detection. With its advanced features, intuitive interface, and open architecture, this qPCR system offers unparalleled performance and versatility, making it the ideal choice for any laboratory.
Specifications
Specifications
CHAI Open QPCR System Specifications:
| Samples: | |
| Format | 16 wells, 100 µL low profile tubes |
| Sample Volume | 10 – 50 µL |
| Supported Probes | TaqMan, Molecular Beacon, Scorpions, Hydrolysis |
| Supported Dyes | Chai Green, SYBR Green |
| Supported Fluorophores | FAM, HEX, VIC, JOE |
| Sensitivity | 1 copy |
| Dynamic Range | 1010 |
| Optical | |
| Excitation | 454 – 487 nm |
| Detection (Single Ch) | 513 – 555 nm |
| Scan Time | 4.4 s |
| Design | Solid-State LEDs & Photodiodes |
| Thermal | |
| Temp Range | 4 – 100 °C |
| Ramp Rate | 0.00001 – 5.0 °C/s |
| Temp Accuracy | ±0.2 °C at 65 °C |
| Temp Uniformity | ±0.4 °C at 65 °C |
| Lid Temp | Ambient – 120 °C |
| Operating Tolerances | 10 – 35 °C, 20 – 80%, non-condensing |
| Dimensions | 10x12x8” |
| Weight | 10lbs |
| Power | 100 – 240 V, 50 – 60 Hz |
Included
Included
Included with this Real-Time PCR System
CHAI Open QPCR System | CAT# A1005 | Single Channel | MSRP: $5799.00
Windows 10 Laptop Running Software
16 Strip Tube
User Manual
Communication Cable
120V Power Cord (3A)
30-Day Warranty
Notes
Notes
Technical Notes
This real-time PCR has been fully inspected and is operating without issue. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

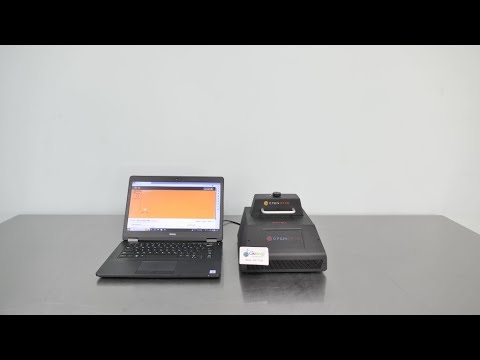

CHAI Open QPCR System Video
CHAI Open QPCR System ID 17539
