Chemglass Hot Plate Stirrer with Temperature Probe
- Description
- Specifications
- Included
- Notes
- Video
Description
Description
Chemglass Hot Plate Stirrer
The Chemglass AREX 6 Digital Pro magnetic hotplate gives you a compact, high contrast, and digitally accurate heating and stirring solution for your lab. This Chemglass Hot Plate Stirrer is programmable through the upfront dials, allowing users to select 50-370°C and a speed of up to 30 – 1700 rpm. Speed is constant even as viscosity changes, thanks to the torque compensation of SpeedServo.
The CG-1997-v model features digital control and a bright display. From this control panel, users can also set their timer function to count up or down and for how long and toggle auto reverse if desired.
This Chemglass Hot Plate Stirrer has a stirring capacity, allowing it to handle up to 20L of water, and is set against a bright white heating plate for high contrast. This platform combines the thermal conductivity of aluminum and the protection of ceramic.
Partnered with the AREX 6 Pro is a VTF thermoregulator probe. This temperature probe uses Fuzzy Logic technology for precise monitoring. The attached probe is easy to position and regulates up to 300°C, with a premium accuracy of ± 0.5 °C, and includes a digital timer that goes up to 24 hours and 59 minutes.
Please see individual SKU ID’s for a complete list of included items.
Specifications
Specifications
Chemglass AREX 6 Digital Pro Hot Plate Stirrer Specifications:
Temperature Range | ambient – 370 °C |
Stirring capacity | 20 liters of H2O |
Speed range | 30 – 1700 rpm cg-1996-v
30-1500 RPM cg 1997-v |
Torque Compensation | SpeedServo |
Timer (Digital Models Only) | 1 min-99 hour 59 Min |
Auto reverse (Digital Models Only) | 5s to 99m 59s |
Autoreverse Increments (Digital Models Only) | 1 sec |
Environmental Tolerances | +5 to +40 °C, Max humidity 80% |
Timer Hh:Mm (Digital Models Only) | From 00:00 To 24:59 |
Pan Dimensions | 5×5” |
Dimensions | 7x11x21” (with Probe and stand)
7x11x5” alone |
Weight | 12 lbs |
Power | 115v, 60 hz, 630W |
Included
Included
Included with this digital hot plate stirrer
Please see individual SKU ID’s for a complete list of included items.
Notes
Notes
Technical Notes
This digital hot plate has been fully inspected and is ready to ship. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

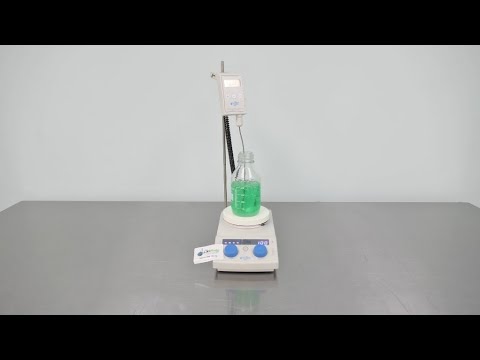

Chemglass Hotplate with Digital Temp Probe Video
ID 16114
Chemglass Hotplate with Digital Temp Probe ID 16114
ID 19449

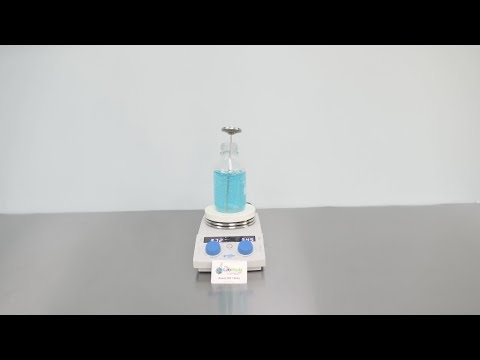

Chemglass Hotplate Stirrer ID 19449
ID 19446-19450

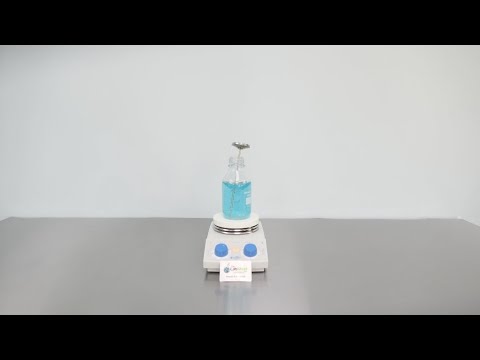

Chemglass Digital Hotplate Stirrer ID 19446
