Cole Parmer Masterflex L/S Peristaltic Pump

$2,449

SKU: 22547 Category:
Clear

Included with ID 22547
Cole Parmer Masterflex L/S Peristaltic Pump | Cat# 07575-38
Easy-Load II Pump Head | Cat# 77200-32
User Manual
120V Power Cord (3A)
30-Day Warranty

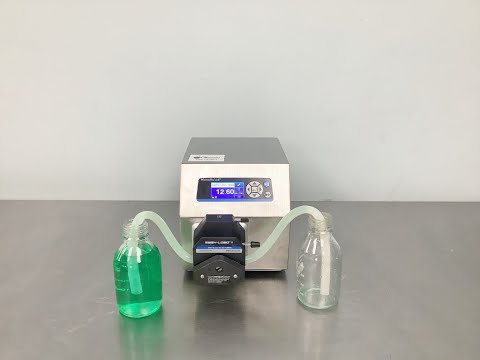

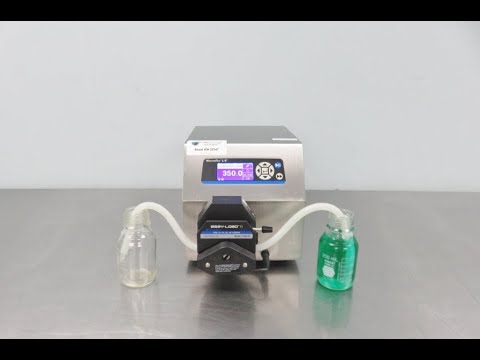

Please note: Glass bottles and tubing seen in photos are not included. These are our testing tools to demonstrate a fully working system.

1 in stock

View cart View Quote List

Description

Cole Parmer Masterflex L/S Peristaltic Pump

The Cole-Parmer Masterflex L/S Peristaltic Pump brings you reversible pump action in a sturdy, rugged form with a maintenance-free brushless motor. The 0.1HP motor has a maximum speed of 600 rpm and a flow rate of 0.006- 3400mL/min, depending on the installed pump head and tubing size. This unit is compatible with Standard, Easy-Load, Easy-Load II, Easy-Load 3, High Performance, Cartridge, Multichannel, PTFE Tubing, PTFE Diaphragm, and Cytoflow. Pump heads are easily swappable, and other varieties are available from the manufacturer. This pump will accept Easy-Load, Easy-Load II, Standard, and High-Performance pump heads.

The controls are simple and easy to use, allowing users to set their speed, direction, and mode with membrane keys and a digital display.  This process drive also features operation modes like continuous run, timed dispense up to 99 hr, 59 minutes, 59 seconds per cycle, copy dispense up to 9,999 cycles, or volume dispense. The stainless-steel housing is NEMA4 (IP66) rated for easy washdowns, and an anti-drip function ensures dispensing accuracy. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.

Specifications

Masterflex L/S Pump Specifications

Speed Range 0.1-600 rpm
Motor HP 0.1 HP
Flow Rate 0.006 – 3400 mL/min depending on pump head and tubing
Control Type Digital Variable Speed
Housing Material Stainless-steel
Reversible Yes
Dimensions 9x17x10”
Weight 23 lbs
Electrical 115/230V, 50/60Hz, 2.2/1.1A

Included

Included with the Cole Parmer Masterflex

Please see individual SKU ID’s for a complete list of included items.

Notes

Technical Notes

This pump has been fully tested by our service team and comes with a clean bill of health. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.

Please note: Glass bottles and tubing seen in photos are not included. These are our testing tools to demonstrate a fully working system.

Video

Masterflex L/S Pump Video

ID 22547

Cole Parmer Masterflex L/S Peristaltic Pump Video ID 22547

ID 24814

Masterflex L/S Pump with Easy Load II 77201-62 ID 24814
