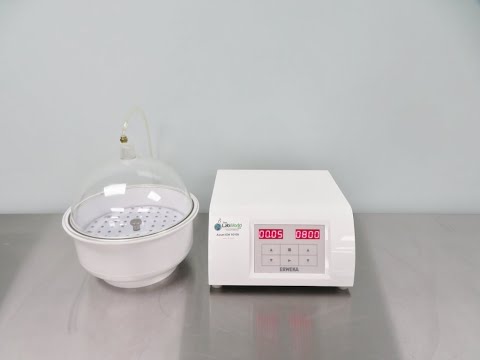

Vacuum Leak Tester – Erweka VTDS
This VTDS Vacuum Leak Tester from ERWEKA is a compact solution for quality control to test the packing and filling of products. The VDT/S is made up of two parts, the vacuum pump that’s also the main control, and is partnered with the vacuum exsiccator 250 mm diameter. To test items, a blister is placed inside the exsiccator that’s then filled with a colored dye solution. During the vacuum process leaking blister cells are emptied and when the vacuum is released the dye solution is drawn back into any faulty samples for easy identification. The system fully conforms to the safety requirements for electronic measuring, control, regulator, and laboratory equipment DIN EN 61010. This vacuum system has a reduced pressure range of -100 to -900 mbar, with an absolute pressure range related to the atmospheric pressure of ≥ 120 mbar. The test timer is adjustable with a range of up to 99 hours and 59 minutes.
Specifications
Specifications
Erweka VTDS Specifications:
| Operating temperature | 10 °C – 40 °C |
| Adjustable Vacuum reduced pressure range | -100 to -900 mbar (-100 to -700 mbar when using glass 300 mm exsiccator) |
| Absolute Vacuum pressure range (related to the atmospheric pressure) | ≥ 120 mbar |
| Test run timer | Adjustable range 99 hrs. 59 min. +/- 0.1 % |
| Dimension Exsiccator | PC and PP 250 mm |
| Dimensions Pump | 12 x 14 x 7 in |
| Weight | 20lbs combine |
| Power | 100-120V, 60Hz |
Included
Included
Included with Vacuum Leak Tester – Erweka VTDS
- Erweka VTDS
- Controller with Integrated Vacuum Pump
- vacuum exsiccator with hose
- 120V Power Cord
- 30-Day Warranty
Notes
Notes
Technical Notes
This system has been fully inspected and is ready to ship. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video
Vacuum Leak Tester – Erweka VTDS Video
Erweka VTDS Vacuum Leak Tester for Sale
