GE Typhoon FLA 7000 Fluorescence Imaging System
The GE Typhoon FLA 7000 Biomolecular Imager provides high-resolution imaging, with a wide dynamic range, and high linearity. This gel imager has flexible imaging modes such as fluorescence, Phosphorimaging, and Digitization of colorimetrically stained gels, for precise quantitation of nucleic acids, proteins, and other biomolecules. This 4 laser scanner is an ideal choice for applications needing sensitive and quantitative measurements of radioisotopic labels by phosphor, single fluorescence, and digitization. Detection for this laser scanner is collected and transformed through a PMT, and then converted into a digital file for display and analysis. Data can be stored either in a linear 16-bit TIFF format or in a .GEL format encoding provides higher dynamic resolution.
This Typhoon phosphoerimager has high throughput with a scanning area of 24 x 40 cm, this imager and has a high resolution of up to 25um with a linear signal response that’s over 5 orders of magnitude. The FLA 7000 has two scanning speeds, standard and quick scanning a 24 x 25cm gell in less than two minutes at 100um resolution. The scanning area of 24 x 40 cm can process up to 12 gels or blots at once.
Specifications
Specifications
GE Typhoon FLA 7000 Specifications
| Imaging Modes | Fluorescence, phosphoimaging, and digitization |
| Excitations Wavelength | 473 nm (blue LD laser) Not Installed
532 nm (green SHG laser) Not Installed 635 nm (red LD laser) Not Installed 650 nm (red LD laser) Installed |
| Filter types supported | IP (imaging plate)
O580 R670 Y520 R710 |
| Scanned image size | |
| Storage phosphor screen | 20 cm x 40 cm maximum (18 cm x 36 cm valid field angle) |
| Fluorescent | 24 cm x 40 cm maximum
(22 cm x 36 cm valid field angle) (238 mm x 398 mm setting size) |
| Digitization | 24 cm x 40 cm maximum
(22 cm x 36 cm valid field angle) (238 mm x 398 mm setting size) |
| Scan Speed | Standard Mode: 200 μm/210 s, 100 μm/210 s, 50 μm/330 s, 25 μm/450 s.
Quick Mode: 200 μm/150 s, 100 μm/150 s, 50 μm/210 s, 25 μm/330 s. |
| Pixel size | 25, 50, 100 or 200 µm |
| Gradation bit depth | 16-bit |
| Image Capacity | 307.2 MB (25 µm)/ 76.8 MB (50 µm)
19.2 MB (100 µm)/ 4.8 MB (200 µm) |
| Dynamic range | Five orders of magnitude |
| Noise level | 70 dB (A) or lower |
| Dimensions | 22x37x14” |
| Power | 100-240V, 50/60 Hz, 3.0A |
| Weight | 190 lbs |
Included
Included
Included with the Fluorescence Imaging System
GE Typhoon FLA 7000 Fluorescence Imaging System
Windows 10 Notebook with Typhoon FLA Software
Red 650nm Laser Installed
IP Filter
Phosphor Stage
BAS-MP 2040S Cassette
BAS-SR 2040 Cassette
Communication Cable
User Manual
120V Power Cord (3A)
30-Day Warranty
Notes
Notes
Technical Notes
This typhoon scanner has been fully inspected and is operating without issue. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

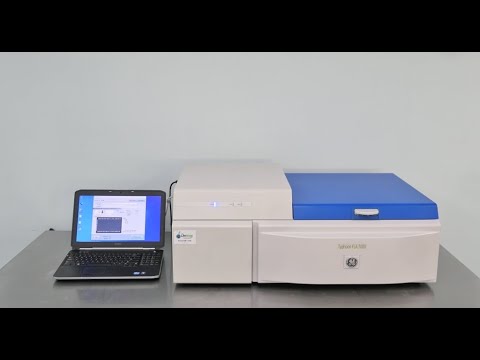

GE Typhoon FLA 7000 Video
GE Typhoon FLA 7000 Fluorescence Imaging System 13183
