Description
Description
Heidolph Hotplate Stirrer
The Heidolph Hotplate Stirrer Hei-Tec offers lab heating and stirring with easy-to-use and reproducible digital control. This magnetic stirrer hot plate features an independent safety circuit cut-off that engages should the plate exceed its set temperature by 25°C. Another safety feature is a residual heat indicator to warn users even if the unit has been switched off.
The Heidolph heated stir plate has a heating range of 20-300°C, heating through a corrosion-resistant ceramic base. The 5 x 5” platform supports up to 20 liters (water) and provides a stirring action up to 1400 RPM. Speed and Temperature for this heated stir plate are shown on the brightly lit display and dialed in quickly with the knob control.
Specifications
Specifications
Heidolph Hotplate Stirrer Specifications:
| Hotplate Temperature Range | 20-300°C |
| Medium Temperature Range | up to 250 °C |
| Platform Dimensions | 5×5” |
| Safety circuit (hotplate) | – 25 °C over hotplate temperature |
| Control accuracy, medium with sensor | +/- 1K |
| Control accuracy, hotplate | +/- 5K |
| Speed | 100 – 1,400 RPM |
| Speed accuracy | +/- 2% |
| Max. stirring quantity(water) | 20l |
| Digital display | yes |
| Environment | 0 – 40 °C, humidity 80% |
| Dimensions | 7 x 11 x 4” |
| Weight | 7lbs |
| Power | 115v, 50-60hz, 625w |
Included
Included
Included with this Stirring Hotplate
Heidolph Hotplate Stirrer | CAT#505-30000-01-3 | Heated Stir Plate | MSRP: $943.06
Ceramic Top (5″ x 5″)
120V Power Cord (3A)
30-Day Warranty
Notes
Notes
Technical Notes
This hotplate stirrer has been thoroughly inspected and is operating without issue. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

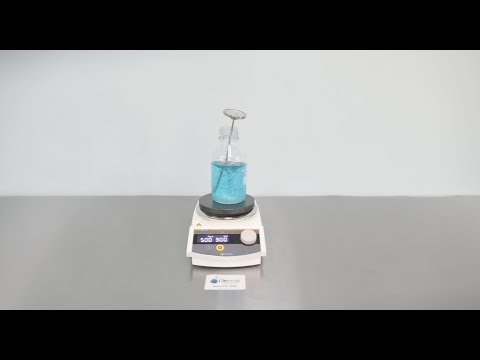

Heidolph Hotplate Stirrer Video
Heidolph Hotplate Stirrer ID 19453
