Description
Description
IKA Hotplate Stirrer RCT
The IKA RCT Basic S1 Magnetic Stirrer Hotplate allows you to stir or heat simultaneously or independently, depending on your needs. This laboratory stirrer lets users select their temperature, up to 300°, and speeds, between 0 and 1100 rpm, through separate dial controls. This Hotplate uses a stainless steel composite Hotplate to enable rapid heating. A stir bar or flea is inserted into the liquid and, using a magnetic field, begins swirling, stirring the liquid independently. Magnetic stirrers tend to be quieter than gear-driven motorized stirrers with no external moving parts.
Models with the ETS D5 temperature control probe:
The ETS D5 Temperature Probe features 3 operating modes: one for varying temperatures, one for uniform conditions, and one suitable for unsupervised operation. This temperature probe connects to the hotplate through the DIN 12878 socket in the rear of the instrument, keeping your temperatures monitored and from overshooting.
Specifications
Specifications
RCT Hotplate Stirrer Specifications:
| Temperature Range | 0 to 300°C |
| Speed: | 0-1100 RPM |
| Pan Dimensions | 5” |
| Power | 115V 50/60Hz 620W |
| Dimensions (L x W x H) | 11x7x4″ |
| Weight (lbs) | 5 lbs |
ETS-D5 Probe Specifications:
| Temperature measuring range | -50 to 450 °C |
| Temperature measurement resolution | 0.1 K |
| Accuracy of temperature measurement | ±0.2 + tolerance PT1000 (DIN IEC 751 Class A) K |
| Set temperature resolution | ±0.1 K |
| Heat control accuracy of medium with sensor | ±0.5 K |
| Immersion depth max. | 200 mm |
| Permissible ON time | 100 % |
| Environtmental Tolerances | 0 – 60 °C, 80 %rH |
| Protection class according to DIN EN 60529 | IP 54 |
| DC Voltage | 8 – 16 V= |
| Current consumption | 15 mA |
Included
Included
Included with this Ika Hotplate Stirrer
Please see individual SKU ID’s for a complete list of included items.
Notes
Notes
Technical Notes
This Ika Hotplate Stirrer has been thoroughly inspected and is operating without issue.
Please note any thermometers, gas supply tanks, regulators, or data-loggers seen in our photos are not included unless otherwise noted in the listing. This is our testing tool to show buyer(s) the instrument is working properly up to manufacturer specification and has been tested by our service department.
All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

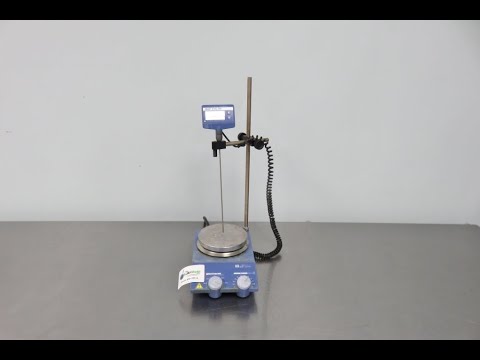

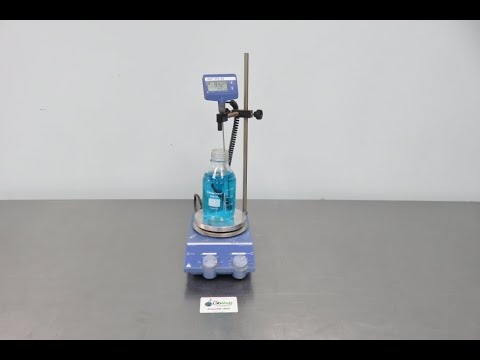

IKA Hot Plate Stirrer Video
ID 18914
IKA Hot Plate Stirrer ID 18914
ID 19697
IKA Hot Plate Stirrer ID 19697
ID 19713
hotplate stirrer ika ID 19713
