Leica CME Microscope
The Leica CME Binocular Microscope offers users a modular inverted compound microscope with superior optics and illumination. This Leica microscope features a drift-free stage design, a rear-facing nosepiece, and sturdy cast aluminum construction. It uses E2 optics, para-centered objectives, and a bright, long-lasting lamp with a wide dynamic range. This compound microscope’s contrast is brightfield, but with the right accessories, sold separately, it can accommodate darkfield, polarization, and phase contrast.
The binocular head of the Leica Microscope has high-quality, dual-focusing eyepieces set at a comfortable 45° angle. They are treated to be antifungal and anti-mold and have comfortable rubber eye guards. The quadruple turret nosepiece is rear-facing with positive stops and a rubber grip for easy turning. The focus mechanism of this compound microscope is maintenance-free with consistent tension and has coaxial coarse and fine adjustments.
Specifications
Specifications
Leica CME Microscope Specifications:
| Focus | 100 divisions of 3 microns each, One full fine focus turn equals 300 microns • One full coarse focus turn equals 2.8 mm |
| Stage | Mechanical, right handed • Size: 15cm (X) x 13.6cm (Y) / 5.905” (X) x 5.342” (Y) • Control shaft length 6.1cm, 2.4” • Travel: 7.6cm (X) x 4cm (Y) / 3” (X) x 1.58” (Y) • Front loading specimen holder for one standard slide |
| Dimensions | 9X11X15” |
| Weight | 24 lbs |
| Power | 120v, 50/60hz,20W, 6v |
Included
Included
Included with this Leica Microscope
Leica CME Microscope | CAT# 1349521X
4x, 10x, 40x, 100x Objectives
10x Eyepieces
Binocular Head
120V Power Cord
30-Day Warranty
Notes
Notes
Technical Notes
This Compound Microscope has been fully inspected and is operating without issue, the optics are clear. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

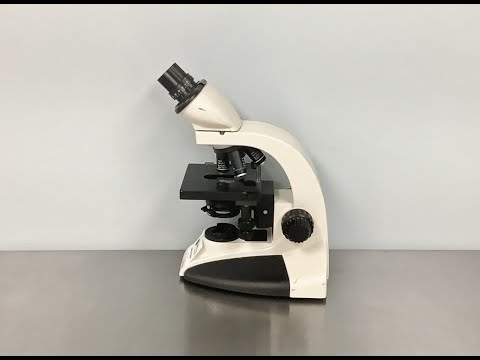

Leica CME Microscope Video
leica cme ID 25644
