Leica DM750 Microscope with ICC50W Camera
The Leica DM750 is a robust and sturdy upright microscope with easy lifting, easy loading, and consistent color and lighting. This laboratory-grade microscope features all brass gears and filled fine focus knobs, with high-quality optics, and a head that can rotate 360 degrees for sharing purposes. Attached to the binocular 10x/20mm eyepiece head is the ICC50 W camera with controlling software for easy microphotography.
The Leica DM 750 microscope uses a rackless XY mechanical stage with no parts that stick out and chip-resistant slide loading that can be accomplished with one hand. This upright lab microscope also features a 0.90/1.25 fully focusable Oil S condenser, a phase ring with an adjustable wheel, and a wide base for stable captures.
Specifications
Specifications
Leica DM750 Specifications:
| Head | 45° Binocular |
| Eyepieces | 10x/20 Pointer eyepiece w/ eye guard
10x/20 Focusing eyepiece w/ eye guard |
| Mechanical Stage | Rackless mechanical with one hand slide holder
XY |
| Condenser | 0.9Dry/1.25 Oil |
| Focus | Coaxial coarse/fine focus |
| llumination | Adjustable LED illumination – 6000 K temp, 25,000 h life at full intensity |
| Dimensions | 10″x15″x20” |
| Weight | 25lbs |
| Power | 120V |
Included
Included
Included with this Microscope
•Lecia DM750 Microscope | CAT# 13-613-169
•ICC50W Digital Camera | CAT# 13-613-735
•RL-Axis DM750M
•0.90/1.25 Oil S1 Condenser
•Phase Ring Adjustable Wheel with BF, DF, PH3, PH2, PH1
Objectives:
• 5X / 0.12 PH0
• 10X / 0.25 PH1
• 20X / 0.40 PH1
• 40X / 0.65 PH2
Eyepieces:
• 10X / 20 Leica HC PLAN | CAT# 13613532
• 10X / 20 Leica HC PLAN | CAT# 13613531
•Windows 10 Notebook Running Leica LAS EZ Software
•Communication & Camera Cable
•User Manual
•120V Power Cord
•30-Day Warranty
Notes
Notes
Technical Notes
This upright microscope comes fully inspected and with clear optics. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

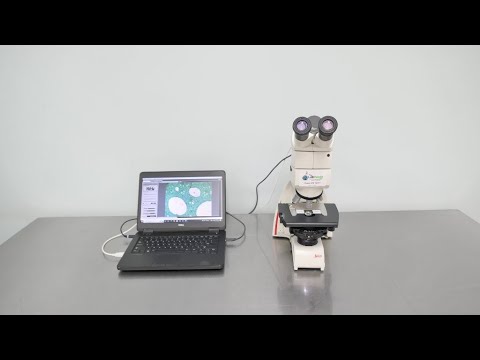

Leica DM750 Microscope with ICC50W Camera Video
Leica DM750 Microscope with ICC50W Camera ID 16911
