Leica RM2035 Manual Microtome

0 out of 5
( There are no reviews yet. )

Availability: Out of stock SKU: UNK1285 Category:

Description

Leica RM2035 Microtome

The Leica RM2035 Microtome is user-friendly and designed for fatigue-free manual operation, for users that appreciate the added level of control with sectioning. This flexible microtome is intended for paraffin sectioning but is also suitable for harder surfaces. With a large 70 mm vertical stroke, this lab microtome is capable of accommodating a super mega cassette, while giving a greater clearance to the knife while specimen changing. The Leica RM2035 Microtome has a section thickness range of 1 to 60 µm.

The Leica RM2035 Microtome handwheel force is adjustable to the weight of the sample and compensates for the centrifugal forces that arise while cutting through a pre-tensioned spring, without the heavy counterweigh that would normally be needed. This gives the user an exceptionally smooth operation, with uniform hand wheel rotation. As an additional safety measure, the handwheel can be locked in place. Lastly, this microtome uses a spacious magnetized waste tray to collect debris that can be easily removed for emptying and cleaning.

Specifications

Leica RM2035 Microtome Specifications:

Operating temperature range:  +10 °C to +35 °C
Temperature range during storage: +5 °C to +55 °C
Relative humidity: max. 80% non-condensing
Section thickness range: 1 to 60 µm
Section thickness settings: from 1.0 – 10.0 µm in 1.0 µm increments

from 10.0 – 20.0 µm in 2.0 µm increments

from 20.0 – 60.0 µm in 5.0 µm increments
Specimen feed: approx. 24 mm, ± 2 mm
Vertical stroke: 70 mm
Max. cutting range without retraction: 69 mm (without specimen orientation 1 µm)
Maximum sectioning area with retraction: 62 mm
Dimensions 20x17x12 in
Weight (lbs) 84 lbs
Working height (knife blade): 168 mm (measured from the table)

Included

Included with Leica RM2035 Microtome

  • Leica RM2035 Microtome
  • Blade Holder.
  • Manual
  • Warranty

Notes

Technical Notes

This Leica RM2035 Microtome has been tested and performed to expectations. All of our lab equipment comes backed with our standard warranty. Should you have any questions, please don’t hesitate to contact us.

Video

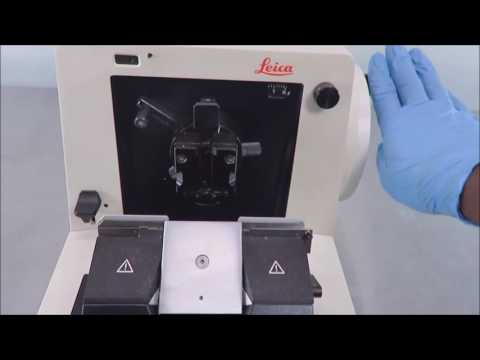

Leica RM2035 Microtome Video
