Li-Cor Odyssey CLx Imaging System
$11,495
- Description
- Specifications
- Included
- Notes
- Video
Description
Description
Li-Cor Odyssey CLX Imaging System
The Li-Cor Odyssey CLx Imaging System gives your lab clear sharp digital results in as little as 6 minutes. By using NIR fluorescence detection, the Licor CLX greatly simplifies your western blot process by eliminating the need to incubate your substrate or wait for the film. This simplification saves you productivity time, conserves water, and reduces the hazardous waste your lab may produce.
The LiCor CLx sets up your data in one digital file that’s ready for immediate analysis and easy record-keeping. The flatbed of this imaging system can scan up to 9 mini-blots, 30 slides, or 6 microplates at once. Near-infrared fluorescence imaging cuts down on the amount of background fluorescence and high sensitivity for your blots. Thanks to the precise laser excitation of the Licor CLx, this fluorescence imaging system gets high signal-to-noise ratios, resulting in images with staggering clarity.
NIR fluorescents are stable steady signals that aren’t affected by time or enzyme kinetics, meaning you can imagine when it’s convenient for you. The dual-channel lasers of this western blot imager also mean you can see multiple targets on the sample blot. The superior data retention of the Odyssey CLx lets you see signals as they really are. The wide linear range and digital formats give you richer, deeper data.
Specifications
Specifications
Licor Odyssey CLX Imaging System Specifications:
Laser/Microscope |
|
Image Field Size: |
25 cm × 25 cm |
Dynamic Range: |
4 logs (Manual); >6 logs (Auto) |
Laser Lifetime: |
40,000 hours typical |
700 Channel Laser Source: |
Solid-state diode laser at 685 nm |
800 Channel Laser Source: |
Solid-state diode laser at 785 nm |
Detectors: |
Silicon avalanche photodiodes |
Scanning Speed: |
5 – 40 cm/s |
Resolution: |
21 – 337 µm |
Focusing Range: |
This microscope is adjustable 0 mm – 4 mm above the scan bed to obtain the best signal-to-noise ratio |
Operation Specifications |
|
Operating Conditions: |
15-35 °C and dew point no greater than 20 °C |
Power Requirements: |
Universal input range is between 100-240 VAC (voltage fluctuations not to exceed 10% of the nominal voltage); 4 Amp maximum; at 120V, 0.5 Amp typical when idle; 50/60 Hz. |
Dimensions |
22x25x15″ (29” of clearance needed to open the hood.) |
Weight |
70 lbs |
Included
Included
Included with the Odyssey CLX Imaging System
Please see individual SKU’s for a complete list of included items.
Notes
Notes
Technical Notes
This Li-Cor CLX comes fully tested and calibrated with a clean bill of health. All of our lab equipment comes backed with our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

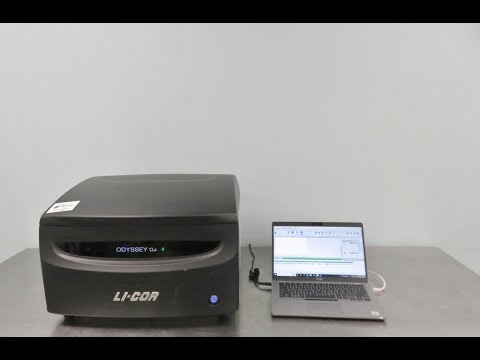

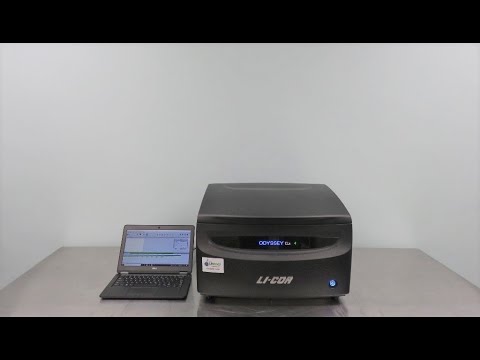

Odyssey CLX Video
