Description

Masterflex I/P Pump

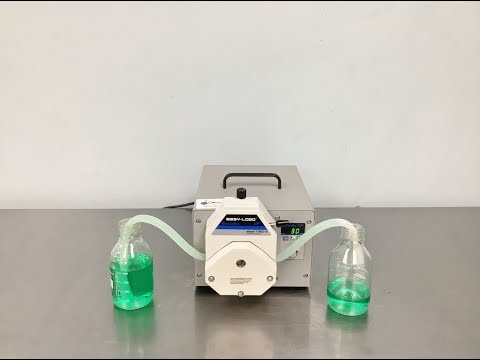

The Cole Parmer Masterflex 77410-10 is a console process drive with reversible pumping action, rugged performance, and precise digital control. This peristaltic pump has a maximum flow rate of 26000 ml/min, depending on drive rpm and tubing size. The motor for this brushless drive is also reversible, pumping fluid in either direction to purge tubing before or after pumping. The drive operates between 33 and 650 RPM on a 1/3 hp and gives you precise control, making it an ideal choice for metering applications.

The Peristaltic Pump is easy to adjust through the upfront membrane keypad, with a digital display that gives you an at-a-glance confirmation of speed and direction on a three-digit LED display. Speed and power, on or off, are controlled separately on this lab pump, so the speed is maintained while starting or ending the pump. This Masterflex pump accepts the following pump heads: Standard, Easy-Load, and High Performance.

Specifications

Masterflex I/P Pump Specifications:

IP rating IP55
Control Type Digital Variable Speed
Min RPM 33
Max RPM 650
Speed Variable
Speed Control ±0.25%
Max Flow Rate 26000 ml/min
Reversible Motor Yes
Digital Dispensing Yes
No. of Pump Heads Accepted 2
Type of Pump Heads Accepted Standard, Easy-Load, High-Performance
Motor (watts) 250
Power (VAC) 115/230
Motor hp 1/3

Head Specifications: Masterflex I/P Model 77602-10 Easy-Load Pump Head for Precision Tubing

Number of Channels 1
Suction lift: 7.6 m (25 ft.)
Tubing sizes accepted I/P® 26, I/P 73, I/P 82
Volume Per Revolution With I/P 26 Tubing (mL)6.2 Volume Per Revolution With I/P 26 Tubing (mL)6.2
Volume Per Revolution With I/P 73 Tubing (mL)12.5 Volume Per Revolution With I/P 73 Tubing (mL)12.3
Volume Per Revolution With I/P 82 Tubing (mL)20 Volume Per Revolution With I/P 82 Tubing (mL)20

Included

Included with this Process Drive

Masterflex I/P Pump | CAT# 77410-10 | MSRP: $4,310.00
Masterflex I/P Pump Head | CAT# 77602-10 | MSRP: $1,380.00
User Manual
120V Power Cord (5A)
30-Day Warranty
Please note: Glassware and tubing seen in photos are not included. These are our testing tools to demonstrate a fully working system.

Notes

Technical Notes

This Masterflex Pump has been thoroughly inspected and is operating without issue. Please note: Glassware and tubing seen in photos are not included. These are our testing tools to demonstrate a fully working system. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
