Eppendorf Bioreactor BioFlo 310
The New Brunswick Eppendorf BioFlo 310 Bioreactor is a flexible system designed to grow various cells used in multiple industries, including microbes, yeast, and fungi. This easy-to-use cell bioreactor works with interchangeable glass vessels, accommodating 2.5 to 14 liters of total volume. This benchtop fermentor features a bright touch-screen controller that allows users to control up to four Bioflo 310s simultaneously. This screen also displays all setpoints, values while in use, cascade loops, and trends. Users can export their data and save up to 10 recipes.
The sleek benchtop design is compact on the bench and features three built-in pumps and a thermal gas flow controller. Gas control options on the Eppendorf BioFlo 310 from New Brunswick include manual gas mixing via Rotameters, automatic four gas mixing using the solenoid valves, autogas flow through the Thermo Mass Flow Controller, ring sparger, and more. The touchscreen controller on the bioreactor allows the user to quickly navigate between set-up, calibration, cascade, pump, and summary displays.
Specifications
Specifications
New Brunswick Bioflo 310 Bioreactor Specifications:
| Temperature Range | From 5°C above coolant temperature to 80°C via PID control. (Minimum 4°C.) |
| Control | Controls 1 to 4 vessels, 32 control loops per vessel. Stores 10 recipes & 8 process variables for trend graphing per vessel. Includes an industrial touchscreen monitor/ user interface, 3 built-in pumps, and connections for all utilities & communications signals used by the first fermentor |
| Indicator and Sensor | Digital display in 0.1°C increments via Platinum RTD probe |
| Agitation Drive | Permanent magnet motor with high torque input |
| Agitation Range | 50 – 1,200 RPM |
| Agitation Control | PID control |
| pH Range | 2 – 14 pH |
| pH Control | PID, Cascade to pumps, gases and external loops |
| pH Sensor | 0.01 increments |
| DO Range | 0 – 200% |
| DO Control | PID control. Cascade to agitation, gases, pumps and external loops |
| DO Sensor | Polaragraphic DO probe with digital display in 0.1% increments. (sold separately) |
| Gas Flow Options | Thermal Mass Flow Controller (TMFC) with four-gas control (4 solenoid valves) |
| Sparger | Ring sparger is provided with 0.2µ disposable filter |
| Exhaust Filter and Condenser | Stainless steel exhaust condenser, mounted on the head plate. Uses 0.2µ disposable filter |
| 3 Pump Controls | 3 Built-in, assignable, peristaltic pumps are standard. External pumps can be added. Control modes: Off, Prime, Base, Acid, Foam, Level 2 Wet, Level 2 Dry, Level 3 Wet or Level 3 Dry |
| Pump Speed | Pumps 1 & 2: 12 RPM Fixed speed duty cycle — ability to view total pump flow rates
Pump 3: 100 RPM Fixed speed duty cycle — ability to view total pump flow rates |
| Utility Requirements Water | 10 PSIG maximum, 50 µm filtration |
| Utility Requirements Gases | 10 PSIG maximum |
| Power | 120v, 50/60Hz, 1800VA |
| Dimensions (W x D x H) | 22x22x32” |
| Weight | 120 lbs |
Included
Included
Included with New Brunswick Bioflo 310 Bioreactor
Eppendorf Bioreactor | CAT# Bioflo 310 | Single Use Bioreactor
Touch Screen Controller
Magnetic Head Motor
Temperature Probe
pH Cable (probe not included)
User Manual
120V Power Cord (10A)
30-Day Warranty

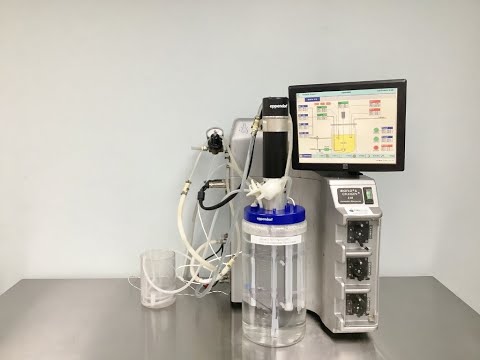

Please Note: The Single-Use Disposable Vessel seen in the photos is not included. This is our testing vessel to demonstrate a fully working system.
Notes
Notes
Technical Notes
This Bioreactor has been fully inspected and is ready to ship.
Please Note: The Single-Use Disposable Vessel seen in the photos is not included. This is our testing vessel to demonstrate a fully working system.
All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video
New Brunswick Bioflo 115 Bioreactor Video
Eppendorf Bioreactor BioFlo 310 ID 21090
