NorLake Refrigerated Incubator with Heating
The Norlake refrigerated incubator is a large capacity 51.9 cu.ft temperature test chamber. A large programmable microprocessor controller sits on the front top panel of the Norlake incubator and constantly displays current conditions. The controller is used to set temperatures as low as +4°C and as high as +70°C and provides other advanced features such as programmable ramp and soak functions. The body incubator chamber maintains a temperature uniformity of +1°C and a variation of +/-0.5°C throughout the chamber depending on the current load conditions. Temperature is audible and visual alarms alert the user if the reach in the incubator temperature fluctuates too low or too high. This wide and flexible range of temperature is optimal for storage needs of biological, medical, clinical, pharmacy, life science, and industrial applications.
The Norlake incubator houses a 1/3hp top-mounted condensing unit, which provides ample power to cool the unit and keeps it free of dust kicked up by feet on the ground. A solid door has a magnetic seal around the edge to keep in the bod incubator air and keep out exterior light. An LED light illuminates the reach in the incubator space when the doors are open. A stainless-steel interior and powder-coated exterior provide an easy surface to keep clean of dirt and clear of debris. This Norlake scientific incubator is an excellent choice for those who need a wide range of temperatures, large capacity, and variable temperature profiles.
Specifications
Specifications
Specifications of this Norlake Incubator
Model | NSRI522WSW/0 |
Volume | 51.9 CU.FT (1473 liter) |
Number of shelves | 6 |
Condensing Unit Size | 1/3 HP |
Refrigerant | R-134a |
Temperature variation | +/-0.5°C @ +4°C to +70°C.
|
Temperature uniformity | +1°C @ +4°C
to +70°C. Data may vary if ambient conditions change, product load is added, or other changes cause interference to chamber airflow. |
Adjustable Control Range | +4°C to +70°C |
Door Configuration | 2 Solid Door, Swing |
Material | Sides and back: powder Coated
Exterior cabinet Top and Bottom: Galvanized steel Interior cabinet liner: Stainless steel
|
Exterior Dimension (WxDxH) | 56x35x80” |
Interior Dimensions (WxDxH) | 21x26x55” |
Shelf Dimensions: (WxD) | 21×26” |
Electrical | 115V, 1PH, 60HZ, 14.7amps |
Plug Configuration | Nema 5-20P |
Included
Included
Included with this Norlake Scientific incubator
- 2021 NorLake Refrigerated Incubator with Heating | CAT# NSRI522WSW/0 | Unused Scratch & Dent | MSRP:
- $21,674.99
- Temperature Validation Report
- Shelves with Hardware
- User Manual
- 120V Power Cord (15A)
- 30-Day Warranty
- Please Note: Orange datalogger seen in photos is not included. This is our testing equipment to demonstrate a fully working system.
Notes
Notes
Notes on this reach in incubator
Refrigerated incubator has been fully tested by our service team with a clean bill of health.
Video
Video

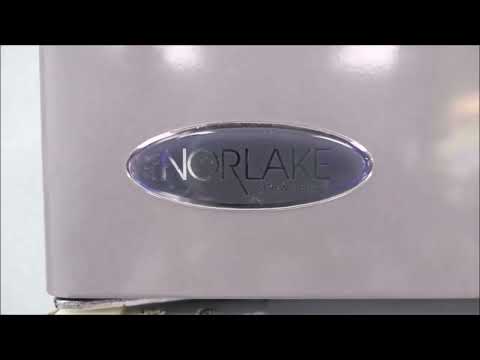

Video of bod incubator
NorLake Refrigerated Incubator with Heating ID 15323
