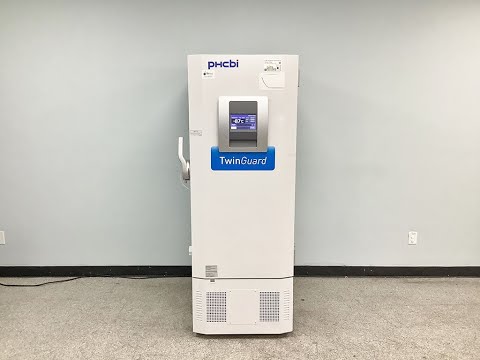

PHCBi Twinguard -86C Ultra Low Freezer
The PHCBI TwinGuard -86 °C Ultra-Low Temperature Freezer provides dependable freezing with built-in redundancy, offering an extra secure long-term critical storage solution. This ULT Freezer’s twin compressors work independently and in tandem, with one to cool and the other to act as a backup. Both operate to recover temperatures quickly. The Panasonic TwinGuard features high stability, quick pull-downs, rapid recovery, and a slow warm-up in the event of a power failure. This upright ultra-freezer features unique thin-profile vacuum insulation panel technology, paired with foamed-in insulation, to help maximize storage while improving stability. This ULT Freezer features a solid door and two sub-doors to aid in temperature regulation during openings, and it boasts an easy-open, one-handed ergonomic handle for quick entry and secure closures.
The PHCBI Twin Guard -86 °C Ultra-Low Temperature Freezer features a high-contrast, graphics-based LCD with touchscreen navigation, as well as wide-ranging alarms, diagnostics, data logging, and predictive analysis. All events can be transferred to a PC through the convenient USB port. This microprocessor-controlled ULT freezer can also be password-protected for added security. Alarms for this Panasonic Freezer include High Temperature, Low Temperature, Power Failure, Door Ajar, Remote Alarm, Battery Life, Fan Motor Life, Fan Lock, and Cooling Circuit Abnormality. This upright PHCBI Twinguard ultra-low freezer can also be operated in ECO mode to help reduce energy costs. The Twinguard Freezer also has remote alarm contacts and three access ports for additional monitoring, backup systems, and instrumentation.
Specifications
Specifications
PHCBi Twinguard -86C Ultra Low Freezer Specifications:
| Effective Capacity | 25.7 cu.ft. (729 L) – (DU702 model)
or 12.7 cu.ft. (360 L) – (DU302 model) |
| Storage (Boxes) For 2”/51 Mm Fiberboard Boxes | 576 – (DU702 model)
or 240 – (DU302 model) |
| Storage (Racks) For 2”/51 Mm Fiberboard Boxes | 24 – (DU702 model)
or 12 – (DU302 model) |
| Storage (Boxes) For 3”/76 Mm Fiberboard Boxes | 384 – (DU702 model)
or 144 – (DU302 model) |
| Storage (Racks) For 3”/76 Mm Fiberboard Boxes | 24 – (DU702 model)
or 12 – (DU302 model) |
| Interior Dimensions | 34x23x55″ – (DU702 model)
or 18x21x47″ – (DU302 model) |
| Temperature Control Range | -50°C to -86°C in 1° increments (center of chamber, ambient temperature 30°C, no load) |
| Internal Doors | insulated; ABS, with stainless steel frames and positive latches |
| Shelves | Stainless steel
Load: 110 lbs (50 kg) per shelf |
| Access Port | 3; upper back wall (back-up system), bottom left (recorder sensor), bottom right (access); Inner diameter: 0.6 in (17 mm) |
| Compressor | (2) 1100 W – (DU702 model)
or (2) 450 W – (DU302 model) |
| Evaporator | Tube On Sheet Type |
| Refrigerant | Mixed Hc/Hfc Blended, |
| Area Footprint | 9.78 ft2 (0.91 m2) – (DU702 model)
or 6.36 ft2 (0.6 m2) – (DU302 model) |
| External Dimensions | 41x37x79″ – (DU702 model)
or 31x39x73″ – (DU302 model) |
| Sound Level | 52 Db(A) (Background Noise 20 Db(A)) |
| Power | 220v, 60 hz, 7.7A, 1670 W – (DU702 model)
or 220v, 60hz, 5.1a, 860w – (DU302 model) |
Included
Included
Included with the PHCBi Twinguard -86C Ultra Low Freezer
Please see individual SKU ID’s for a complete list of included items.
Notes
Notes
Technical Notes
This PHCBi Ultra Low Freezer has been fully inspected and comes with a clean bill of health and current temperature validation. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
