Description
Description
PHCBi Twinguard -86C Ultra Low Freezer
The PHCBI TwinGuard -86 °C Ultra-Low Temperature Freezer offers dependable freezing with built-in redundancy for an extra secure long-term critical storage solution. This ULT Freezer’s twin compressors work independently and in tandem, one to cool, one that acts as a backup, and both operate to recover temperatures quickly. The Panasonic TwinGuard features high stability, quick pull-downs, rapid recovery, and a slow warm-up during a power failure. This upright ultra-freezer features unique thin profile vacuum insulation panel technology partnered with foamed-in insulation to help maximize storage while improving stability. This 12.7 cu ft ULT Freezer has a solid door and two sub doors to aid in temperature regulation on openings and features an easy-open, one-handed ergonomic handle for quick entry and secure closures.
The PHCBI twin guard -86 °C Ultra-Low Temperature Freezer has high contrast, a graphics-based LCD display with touch screen navigation, and features wide-ranging alarms, diagnostics, data log, and predictive analysis, all events of which can be transferred to a PC through the convenient USB port. This microprocessor-controlled ULT freezer can also be password-protected for added security. Alarms for this Panasonic Freezer include High Temperature, Low Temperature, Power Failure, Door Ajar, Remote Alarm, Battery Life, Fan Motor Life, Fan Lock, and Cooling Circuit Abnormality. This upright PHCBI Twinguard ultra-low freezer can also be used in an ECO mode to help save on energy costs. The Twinguard Freezer also has remote alarm contacts and three access ports for additional monitoring, backup systems, and instrumentation.
Specifications
Specifications
PHCBi Twinguard -86C Ultra Low Freezer Specifications:
| Effective Capacity | 25.7 cu.ft. (729 L) |
| Storage (Boxes) For 2”/51 Mm Fiberboard Boxes | 576 |
| Storage (Racks) For 2”/51 Mm Fiberboard Boxes | 24 |
| Storage (Boxes) For 3”/76 Mm Fiberboard Boxes | 384 |
| Storage (Racks) For 3”/76 Mm Fiberboard Boxes | 24 |
| Interior Dimensions | 34x23x55″ |
| Temperature Control Range | -50°C to -86°C in 1° increments (center of chamber, ambient temperature 30°C, no load) |
| Internal Doors | 2 insulated; ABS, with stainless steel frames and positive latches |
| Shelves | Stainless steel, 3 shelves (adjustable); Inner dimensions:33.6″ W x 21.0″ D (855 x 534 mm); Load: 110 lbs (50 kg) per shelf |
| Access Port | 3; upper back wall (back-up system), bottom left (recorder sensor), bottom right (access); Inner diameter: 0.6 in (17 mm) |
| Compressor | (2) 1100 W |
| Evaporator | Tube On Sheet Type |
| Refrigerant | Mixed Hc/Hfc Blended, |
| Area Footprint | 9.78 ft2 (0.91 m2) |
| External Dimensions | 41x37x79″ |
| Sound Level | 52 Db(A) (Background Noise 20 Db(A)) |
| Power | 220v, 60 hz, 7.7A, 1670 W |
Included
Included
Included with the PHCBi Twinguard -86C Ultra Low Freezer
PHCBi Ultra Low Freezer TwinGuard -86C | CAT# MDF-DU702VXC-PA | MSRP: $21,878.00
Temperature Validation Report
Shelves
Brand New Filter Installed
Brand New Battery Backup Installed
User Manual
208/230V Power Cord (8A)
30-Day Warranty
Please Note: The orange datalogger seen in photos is not included. This is our testing equipment to demonstrate a fully working system.
Notes
Notes
Technical Notes
This PHCBi Ultra Low Freezer has been fully inspected and comes with a clean bill of health and current temperature validation. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

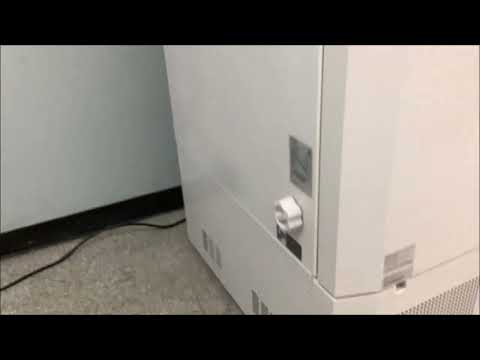

Panasonic Ultra Low Freezer TwinGuard -86C Video
