Description
Description
PHCBi Cell IQ CO2 Incubator
The PHCBi Cell IQ MCO-170AICUVL-PA is a CO2 Incubator with reliable direct heating, air-jacketed insulation, and ongoing background decontamination. This lab incubator uses copper-enriched stainless steel for interior surfaces, providing the chemical resistance of stainless steel with the germicidal barrier to airborne contaminants of copper. In addition to the resistant surfaces, the Panasonic Incubator uses a safe cell UV system that gently pulls air over the humidity reservoir and UV light disinfection protocols, killing airborne contaminants. This innovative system eliminates costly HEPA filters that only trap contaminants.
The PHCBi Cell IQ CO2 Incubator is simple, with guided setups and an easy-to-read full-color LCD display. From there, users can select their desired temperature in 0.1° increments and set their time and CO2 concentration. Users can also export their data through the integrated USB interface. The natural convection and high-performance infrared CO2 sensor of this PHCBi co2 incubator provide precise CO2 control and fast recoveries without overshooting after an opening. This optimal growth environment is maintained for cell culturing and is calibrated in real time. This air-jacketed Panasonic incubator is ideal for tissue culture research, genomic expression, antibody production, transfection, and transduction procedures.
The features a UV and H2O2 Decontamination cycle – see model for details.
The MCO-170MP-PA model is a multigas incubator – providing precise CO2 and O2 control to recreate the conditions essential for in vivo environments. See model for details
Specifications
Specifications
PHCBi CO2 Incubator CELL-IQ MCO-170AICUVHL-PA Specifications:
| Interior Volume | 5.8 Cu.Ft. (165 L) |
| Interior Dimensions | 20x18x25” |
| Access Port | 1: back side (1.2″ (30 Mm) Diameter) |
| Air Filter | 0.3 Um, Efficiency: 99.97 % Or Higher |
| Uv Lamp | 4W X 1 (Ozone-Free Emission) |
| Temperature Control Range | + 5°C Above Ambient To +50°C |
| Temperature Uniformity | ±0.25ºc (Ambient Temperature: 23ºc, Setting: 37ºc, CO2: 5 %, No Load) |
| Co2 Control Range | 0% – 20% |
| Co2 Controller | PID Control System |
| Co2 Gas Connection | 0.157 Inch To 0.36 Inch (4 Mm To 6 Mm) Diameter Tube Can Be Connected |
| Co2 Gas Pressure | 0.03 Mpa(G) (0.3kgf/Cm2(G),4.3 Psi(G)) |
| Co2 Variation | ±0.15% (Ambient Temperature: 23ºc, Setting: 37ºc, CO2: 5%, No Load) |
| Co2 Sensor Type | Dual-Wave Infrared (IR) |
| Decontamination Methods | SafeCell ultraviolet light. Hydrogen peroxide (H2O2) vapor system |
| Contamination Controls | InCu-SaFe copper enriched stainless steel interior and shelves, SafeCell UV light |
| Decontamination Cycle Time | < 3.0 Hours |
| Humidifying System | Natural Evaporation With Humidifying Pan, 95 %R.H.±5 %R.H. |
| Exterior Dimensions | 25x30x35” |
| Weight | 176 lbs |
| Power | 110-120V, 60 Hz, Power Consumption 376W |
MCO-170MP-PA Model only
| Capacity | 5.7 cu.ft. (161L) |
| External Dimensions | 26x29x40” |
| Internal Dimensions | 18x19x26” |
| Weight | 230lbs |
| Oxygen Control Range | 1-18% & 22-80%, ±0.2%; stabilized Zirconia Sensor |
Included
Included
Included with PHCBi CO2 Incubator
Please see individual SKU ID’s for a complete list of included items.
Notes
Notes
Technical Notes
This instrument has been fully inspected and comes with a current temperature validation report. Please Note: CO2 and N2 Supply tank with pressure regulator and Orange datalogger seen in photos is not included. This is our testing equipment to demonstrate a fully working system. All of our lab equipment comes backed by our standard warranty. Should you have any questions, don’t hesitate to contact us.
Video
Video

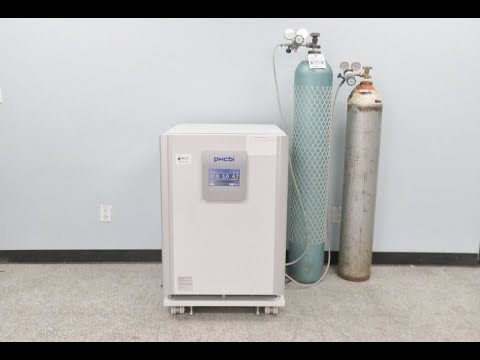

PHCBi CO2 Incubator CELL-IQ MCO-170AiC Video
ID 23560
PHCBI CO2 O2 Incubator Video ID 23560
ID 25578

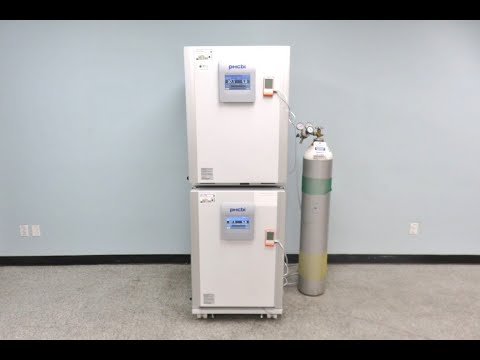

PCHBI Incubator CO2 Direct Heat - Double Stack ID 25578
