Protein Simple Ella Immunoassay Analyzer
$13,895
- Description
- Specifications
- Included
- Notes
- Video
Description
Description

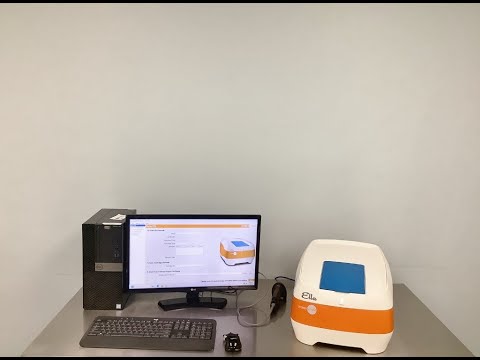

Protein Simple Ella Immunoassay Analyzer
The Protein Simple Ella is an easy to use, fully automated ELISA Platform that brings you quantifiable, reproducible results with rapid turnaround. This compact immunoassay system produces highly validated assay data with sub-picogram sensitivity, 4+ logs of dynamic range and unbeatable precision. This system is fully automated from protein separation, immunoprobing, detection, and data analysis. Ella can analyze up to 8 samples simultaneously.
The operation of the Ella Immunoassay Analyzer is incredibly simple: users simply add their sample and buffer into a Simple Plex cartridge, load it into Ella, and start your run using the powerful accompanying software. Ella will do the rest and deliver results in under an hour. Sample volumes can be as low as 2.5µl, so you can get great results from small amounts when samples are limited. Inside the cartridge, the automated ELISA takes over sample loading, protein separation, washing, detection, and data analysis all within the chamber.
This full automation streamlines your workflow and eliminates human errors associated with traditional assays. This allows for consistency and reproducibility across multiple users and lab sites. Ella is very versatile, with over 250 fully validated targets to choose from in the assay menu, this immunoassay analyzer can be used for applications ranging from pre-clinical research, covid research, and biomanufacturing to oncology or vaccine development.
Specifications
Specifications
Protein Simple Ella Specifications
Sample Volume Required | 2.5µl to 25µl |
Dynamic Range | 3-4 logs |
Sensitivity | <1pg/mL |
Assay Run Time | 75 min typical, customizable up to 80 min |
Samples Per Run | Up to 72 |
Plex Level | Up to 8 |
Results Per Run | Up to 256 |
Replicates Per Result | Triplicate |
Dimensions | 21x14x11 (with computer) |
Weight | 35 lbs |
Electrical | 100-240V, 50/60Hz, 300VA |
Included
Included
Included with the Ella Immunoassay Platform
Protein Simple Ella Immunoassay System| CAT# ProteinSimpleElla | MSRP: $43,285
Windows 10 Computer Workstation Running Simple Plex Software
LCD Monitor, Keyboard & Mouse
Barcode Scanner
Communication Cables
User Manual
120V Power Cord (4A)
30-Day Warranty
Notes
Notes
Technical Notes
This immunoassay system has been fully tested by our service team and is operating without issue. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
