Thermo Revco UXF Ultra Low Temperature Freezer UXF60086A
- Description
- Specifications
- Included
- Notes
- Video
Description
Description
Thermo Revco UXF Ultra-Low Temperature Freezer
Thermo Revco UXF600 Ultra Low Temperature Freezer provides users with a secure storage solution that won’t take up large amounts of lab space. This ultra-low freezer’s interior with a capacity of 28.8 cubic feet has been designed for maximum storage in a compact footprint holding up to 600 sample boxes. The reinforced shelving of the Revco UFX can hold up to 245 lbs, while the five polystyrenes insulated compartment doors help maintain temperatures during openings.
The Revco UXF600 Ultra Low Temperature Freezer turns an eye to energy efficiency with HE compressors, easy to wash dust filters and brazed plate heat exchanger keep this ultra-low temperature freezer running proficiently. Sample integrity is maintained and the temperature is recovered quickly thanks to a special BTU reserve. Users have a choice of refrigeration modes, an energy efficiency model that saves up to 15% energy usage, or a high-performance mode for ultra-tight temperature uniformity. Embedded rare earth magnets within the inner doors hold them closed without the added bulk of latches or exposed magnets. Parameters such as temperature range, refrigeration mode, and alarm settings are easily programmed through the digital display on the front of the unit. An onboard computer can store up to 15 years of temperature and event data, and a USB port allows users to download data logs or transfer settings between freezers.
Specifications
Specifications
UXF600 Ultra Low Temperature Freezer Specifications:
Temperature Range | -50° to -86°C |
Peak Variation at -80C | +2.9/-4.9°C |
Warm up Time -80 C to -50C | 240 min. |
Door Opening Recovery | 33 min. |
Interior Dimensions | 33.5x27x51 in |
Volume | 28.8 cu. ft./ 815L |
Capacity Shelf | 245 lbs / 111.13 kg |
Box Capacity | 600 Boxes |
2ml Vial Capacity per Freezer | 60000 x 2ml |
Footprint (English) | 11.38 sq. ft. / 1.06 sq m |
Vial to Footprint Ratio | 5.272 vials/sq. ft |
Dimensions (L x W x H) Exterior | 36x44x78 in |
Power | 115v, 60hz, 16amps |
Energy Usage | 17/21.3kW-hr/day |
Weight | 854 lbs |
Included
Included
Included with Thermo Revco Ultra Low Temperature Freezer
Thermo Revco UXF Ultra Low Temperature Freezer | CAT# UXF60086A | -86°C
Temperature Validation Report
Shelves
120V Power Cord (16A)
NEW Filter Installed
NEW Battery Backup Installed
30-Day Warranty
Notes
Notes
Technical Notes
This listing is for a gently used Thermo Revco ULT Freezer that’s been fully tested and validated by our service team. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

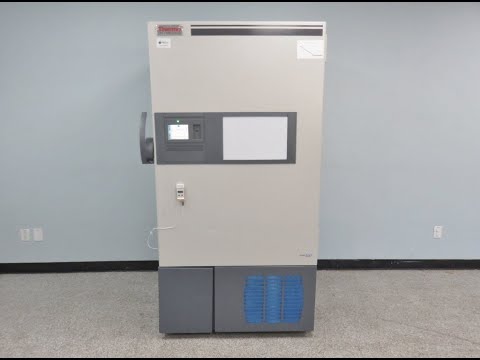

Thermo Revco UxF Ultra Low Temperature Freezer UXF600 Video
Thermo Revco UXF60086A -86 Freezer Video ID 20553
