Stirling Ultracold ULT25NEU
This Stirling ULT25NEU Freezer is a compact ULT freezer that offers reliable -80°C conditions in a unique, portable format. This moveable format lets you be confident that sample integrity is maintained during travel. With a small footprint and a lightweight system weighing only 46 lbs, this freezer is ideal for transporting clinical trials and biological drug delivery.
The Stirling shuttle has a wide temperature range from -20 to -86°C while offering a very low energy consumption at <2.8 kWh/day thanks to the innovative natural refrigerants and lack of a compressor. Users of this Stirling Shuttle can select their parameters from the intuitive microprocessor control panel, with three presets at -86, -40, and -20°C and a lock feature to prevent accidental tampering in transit.
This 0.9 cu ft freezer weighs just 45 lbs and can hold up to 18 2in standard boxes. The Stirling Ultracold ULT25NEU plugs into any outlet and can be used with mobile power supplies between site locations. This easily maneuverable and easily placed freezer is a true innovation and problem solver!
Specifications
Specifications
Stirling Shuttle ULT-25NEU Portable -80C Ultra-Low Temperature Freezer Specifications:
| Volume | 25 liters (0.9 cu.ft.) |
| Storage Capacity | 18 standard 2″ boxes |
| Temperature Range | -86°C to -20°C @ 32°C (90°F) ambient, uniformity ±3°C at -80°C top to bottom, adjustable in 1°C increment |
| Presets | -86°C (default), -40°C and -20°C |
| Noise | <45 dB(A) at 1 meter |
| Ambient Operating | Temperature +5°C to +35°C (41ºF to 95°F) |
| Refrigerant | R-170 (Ethane) 10 – 12 grams |
| Evaporator | Cold wall (inner liner) |
| Heat Rejection | Finned heat exchanger with forced air cooling |
| Dimensions | 14 x 29 x 19″ |
| Weight | 46 lbs |
| Power | 120V or 240V, AC; 60Hz or 50Hz; or 12V DC from a mobile source
(Current) 280 watts (4 amps @120V, 2 amps @240V) |
Included
Included
Included with Stirling Shuttle ULT-25NEU
Please see individual SKU ID’s for a complete list of included items.
Notes
Notes
Technical Notes
This Stirling Shuttle ULT-25NEU Portable -86C Freezer has been fully inspected and is operating without issue. All of our lab equipment comes backed by our standard warranty. Should you have any questions about any of our lab freezers, please don’t hesitate to contact us.
Video
Video

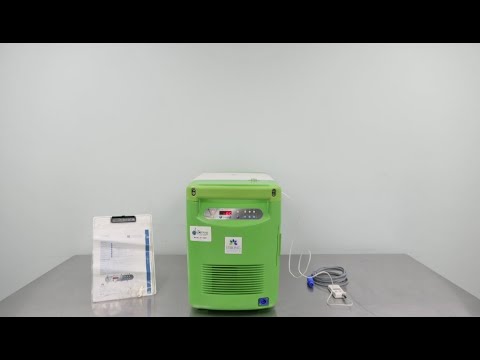

Stirling Shuttle ULT-25NEU Video
stirling ultracold ult25neu ID 17494
