Tecan Fluent 780 Liquid Handler

Availability: Out of stock SKU: 22023 Category:

Description

Tecan Fluent 780 Liquid Handler

The Tecan Fluent 780 robotic liquid handler streamlines your workflow with quiet operating, independently working arms and ample deck space while still being compact. Operation is simple through a full-color touchscreen controller that can be configured in many ways to suit your needs best. The Fluent 780 is optimized for different plate setups and adapts to future needs thanks to the Dynamic Deck technology and modular configuration. DeckCheck technology automatically senses problems, such as misplaced plates or samples loaded incorrectly, and displays them for the operator to see and rectify the discrepancy.

The Tecan Fluent 780 works with up to three arms that can be swapped out to suit your needs and perform functions such as aliquoting, serial dilutions, or adding reagents. This robot liquid handler also has excellent liquid level detection to help conserve reagents and samples, while the FluentControl software executes complex tasks with just the touch of a finger. Multiple scanners identify plates, tubes, and samples and automatically connect results to their samples. Results can be output into files to integrate with your inventory management system seamlessly.

The Tecan Fluent is ideal for many applications, including cell and tissue culture, PCR plate loading, fluid transfer, serial dilutions, plate stamping, and more. This robotic handler is set up for high throughput use, with a right-positioned Fluent Carousel and deck extension kits. This Fluent 780 also features a hood with UVC irradiation and HEPA filtration for added safety.

Specifications

Tecan Fluent 780 Liquid Handler Specifications:

Deck Dimensions width and depth 58X30″
Robotic arms 1-3
Multiple Channel Arm 96 1μl to 1000μl volume range; free dispense down to 1μl @<4%; cLLD on any tip position; shifted tip pick – row, column or quadrant pick up; optional gripper attached directly to the MCA 96​​
Disposable tips (DiTi) sizes In Combi trays: 50μl, 200μl and 1000μl in 96 well format; with or without filters​
Robotic Gripper Arm Standard or long Z axes; regular gripper head or automatic Finger Exchange System gripper head,both with a choice of gripper fingers – eccentric, long eccentric, centric, tube; barcode reader option
Flexible Channel Arms 8 pipetting channels, independent Z movement; automatic Y tip spacing from 9-38 mm
Disposable tip (DiTi) sizes 10, 50, 200, 1,000 μl – with or without filters; 10 and 350 μl – nested without filters
Tip Ejection System jection of disposable tips in a contained environment to prevent aerosols. Also used for tip re–racking
Fixed tips Standard, low volume 384-well and Te-PS tips (liquid displacement pipetting system only)
Rapid Wash Ultra-fast delivery of wash solution by diaphragm pump (liquid displacement pipetting system only)
External Dimensions 65x38x64″-Fluent 780

28 x 31 x 37″ -Carousel

Power 100–240 VAC, 50–60 Hz
Weight 600lbs Main Unit

265lbs Carousel



Included

Included with this Robotic Liquid Handler

Tecan Liquid Handler Fluent 780 | CAT# 30042011 | MSRP: $202,314.98
Windows 10 Computer Workstation Running Tecan FluentControl
Touch Screen Tablet Controller
MCA 96 Robotic Head
FCA Span 8 Robotic Head
RGA Robotic Gripper Arm for Plate Transfer
Waste Chute for Disposable Plates
Plate Carousel Hotel
Nest for Microplates
Reference Teach Plate
Deck Extension Kits as seen in boxes
HEPA Filtration System
All Required Communication Cables
User Manuals
120V Power Cords (12A)
30-Day Warranty

Notes

Technical Notes

This Tecan Liquid Handler has been thoroughly inspected and is operating without issue. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.

Video

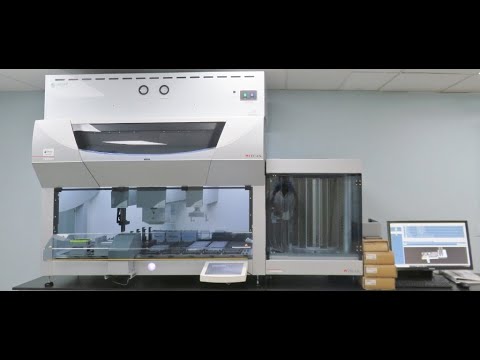

Tecan Fluent 780 Liquid Handler Video

Tecan Fluent 780 Liquid Handler ID 22023
