Thermo Evolution 300 UV/Vis Spectrophotometer
The Thermo Evolution 300 is a high-performance UV-vis spectrophotometer used to measure UV to infrared light with a wavelength range from 190 to 1100nm. This spectrophotometer covers a wide variety of applications designed for pharmaceutical, biochemistry, and life sciences research. The Evolution 300 from Thermo Scientific is controlled by VisionSecurity software which includes an easy-to-use automated wizard to assist the user with setting up and customizing assays. Some of the more popular assays used with this Spectrophotometer include Nucleic Acid Test, Kinetics, Protein Concentration, Thermal Denaturation, Thermo Renaturation, Quantitative Analysis, and more.
The Thermo Scientific Evolution 300 UV-Vis Spectrophotometer uses a powerful pulsing Xenon lamp along with a variable bandwidth platform making it one of the most sensitive absorbance spectrophotometers in today’s market. This instrument works well with QA and QC applications along with five variable spectral bandwidth settings. This robust spectrophotometer has an acquisition rate of 50 data points per second and is ready to use out of the gates. No more waiting to warm the system up before use. The Evolution series VisionSecurity software accompanying this system is 21 CFR Part 11 compliance allowing to submit data for audit trail. The Thermo Evolution 300 has everything you need to bring your research to life.
Contact us today to learn more about our used spectrophotometers for sale.
Specifications
Specifications
Thermo Evolution 300 UV/Vis Spectrophotometer Specifications:
| Detector Type | Dual Matched Silicon Photodiodes |
| Accuracy | ±0.004A at 1A, ±0.004A at 2A, ±0.006A at 3AÅ |
| Range (Photometric) | >4A |
| Baseline Flatness | ±0.0015A (200-800nm), 2.0nm SBW, smoothed |
| Beam Geometery | Dual Beam, Quartz controlled |
| Drift | <0.0005A/hr, 500nm, 2.0nm SBW, 2hr warm-up |
| Interface | Computer Control |
| Lamp | Xenon |
| Min. Data Interval | 0.5nm |
| Scan Speed | 1 to 3800nm/min
(3800, 2400, 1200, 600, 240, 120, 60, 30, 10, 5, 1 nm/min Intelliscan) |
| Spectral Bandwidth | Variable 0.5; 1.0; 1.5; 2.0; 4.0nm |
| Stray Light | 198 nm: 2.9 A KCl
220 nm: 4.2 A NaI 340 nm: 4.3 A NaNO2 |
| Wavelength Accuracy | ±0.20nm (546.11nm Hg emission line); ±0.3nm for 190-900nm |
| Wavelength Range | 190 to 1100nm |
| Wavelength Repeatability | Standard deviation of 10 measurements <0.05 nm |
| Pathlength | Up to 100mm cuvettes |
| Certifications/Compliance | 21 CFR Part 11 and audit-proof IQ/OQ/PQ documentation. ISO 9001:2000 |
| Dimensions | 24x20x11″ |
| Weight | 50 lbs |
| Power | 100-240V, 50/60Hz, 150Va |
Included
Included
Included with Thermo Evolution 300 UV/Vis Spectrophotometer
Thermo Evolution 300 Spectrophotometer | UV-VIS | CAT# 10300101
Windows 10 Laptop Running VisionPro Software
Single Sample Cuvette Holder
Validation Reports
Communication Cable
User Manual
120V Power Cord (3A)
30-Day Warranty
Notes
Notes
Technical Notes
This used lab equipment listing is for a fully calibrated Thermo Evolution 300 UV-Vis Spectrophotometer. We calibrated the spectrophotometer using our own house standards purchased from Thermo Scientific. The instrument comes with a calibration report showcasing the performance of the system and is backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

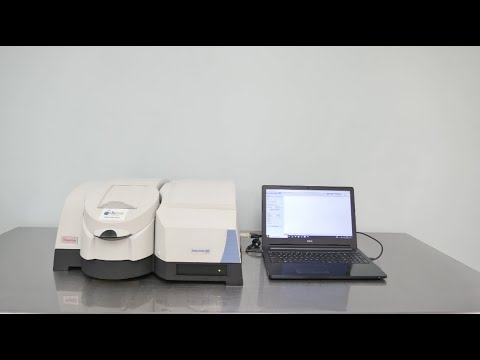

Thermo Evolution 300 UV/Vis Spectrophotometer Video
Thermo Evolution 300 Spectrophotometer ID 18527
